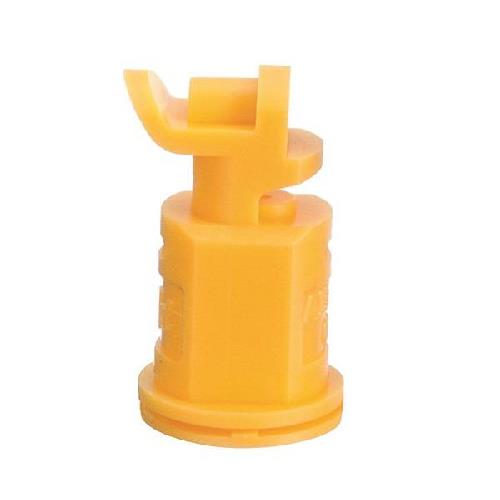

TEEJET AI 3070-02VP DUAL PATTERN SPRAY TIP-YELLOW
- Item #: AI3070-02VP
- Mfg #: AI3070-02VP
- $7.37
Product Description
TEEJET AI3070-02VP AIR INDUCTION DUAL PATTERN SPRAY TIP - YELLOW. The TEEJET AI3070 Air Induction Dual Pattern flat spray tip is constructed of POLYMER with VisiFlo color-coding. The AI3070-02 is rated at 0.20 GPM at 40 PSI.
For use with the 98579-*-NYR TeeJet cap
Typical Applications:
- Provides excellent penetration and seed head coverage for fungicide spraying on cereal crops
- AI3070 produces two wide angle, flat spray patterns for uniform coverage in broadcast applications
- 30° forward tilted spray penetrates dense crop canopies, while the backward tilted 70° spray maximizes coverage of the crop seed head
- Drift resistant drops are produced through the use of a venturi air aspirator
- All acetal construction for excellent chemical and wear resistance
- Removable pre-orifice for fast and easy cleaning
- Suggested spray pressure range of 20–90 PSI (1.5–6 bar)
- Automatic alignment with the use of 98579-1-NYR Quick TeeJet® cap and gasket.
Always double check your application rates. Tabulations are based on spraying water at 70°F (21°C).
Product Specs
- ColorViolet
- MaterialPolymer
- Pressure20-90
- Product TypeAI3070 Dual Pattern
- Spray Angle30° and 70°
