TEEJET AI 3070-04VP DUAL PATTERN SPRAY TIP-RED

  • Item #: AI3070-04VP
  • Mfg #: AI3070-04VP
  • $6.02

Product Description

TEEJET AI3070-04VP AIR INDUCTION DUAL PATTERN SPRAY TIP - RED.  The TEEJET AI3070 Air Induction Dual Pattern flat spray tip is constructed of POLYMER with VisiFlo color-coding.  The AI3070-04 is rated at 0.40 GPM at 40 PSI.

For use with the 98579-*-NYR TeeJet cap
Typical Applications:
  • Provides excellent penetration and seed head coverage for fungicide spraying on cereal crops
  • AI3070 produces two wide angle, flat spray patterns for uniform coverage in broadcast applications

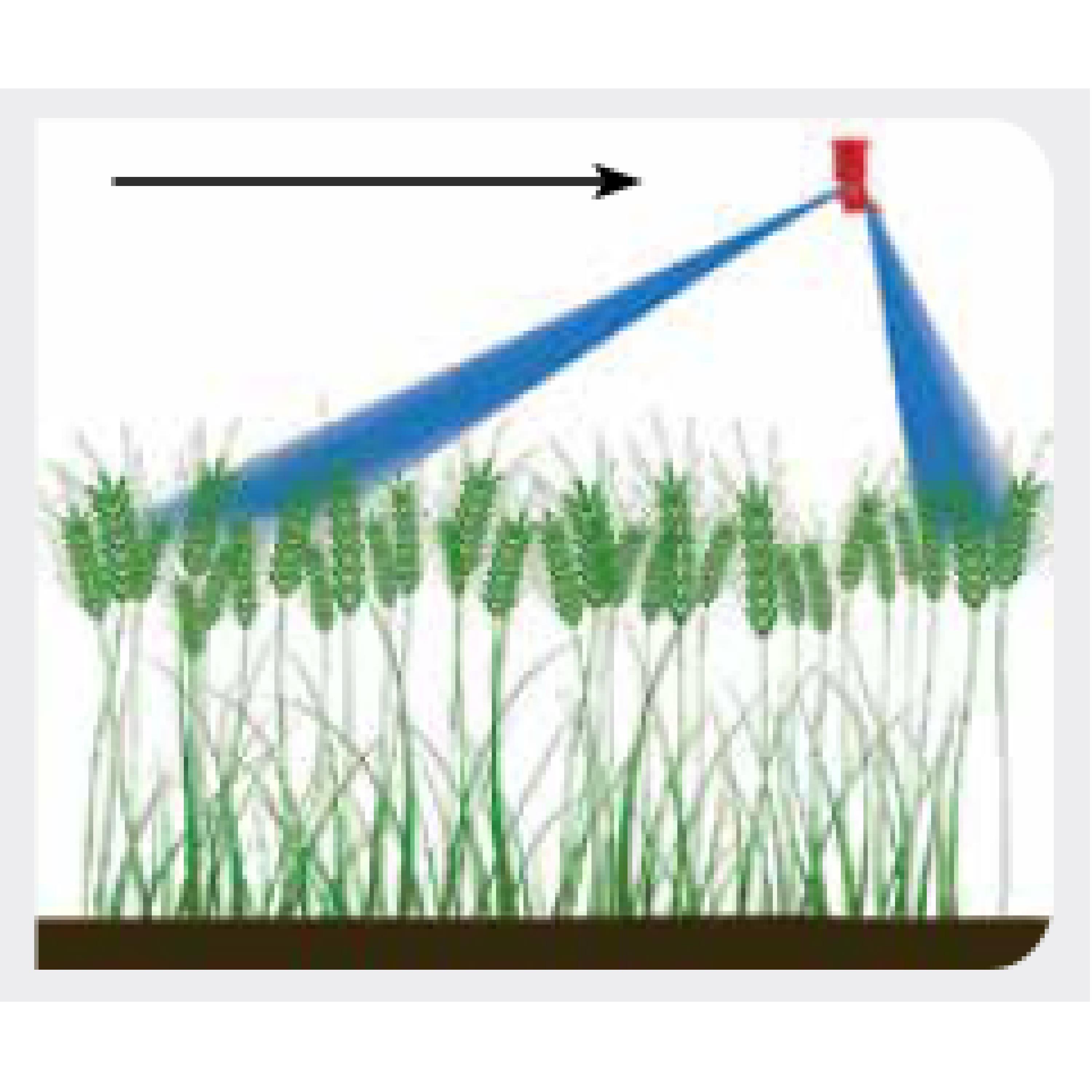

  • 30° forward tilted spray penetrates dense crop canopies, while the backward tilted 70° spray maximizes coverage of the crop seed head
  • Drift resistant drops are produced through the use of a venturi air aspirator
  • All acetal construction for excellent chemical and wear resistance
  • Removable pre-orifice for fast and easy cleaning
  • Suggested spray pressure range of 20–90 PSI (1.5–6 bar)
  • Automatic alignment with the use of 98579-1-NYR Quick TeeJet® cap and gasket.
Always double check your application rates. Tabulations are based on spraying water at 70°F (21°C).

Product Specs

  • ColorRed
  • MaterialPolymer
  • Pressure20-90
  • Product TypeAI3070 Dual Pattern
  • Spray Angle30° and 70°
