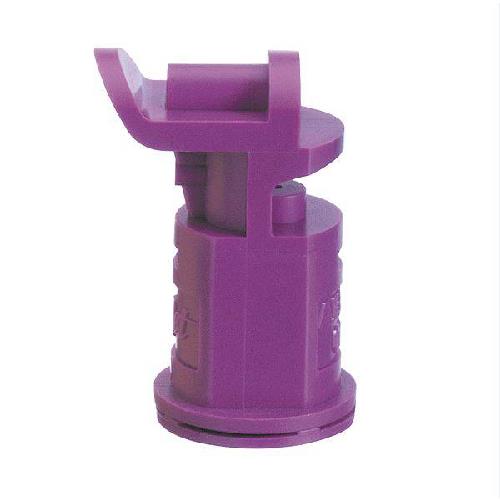

TEEJET AI 3070-025VP DUAL PATTERN SPRAY TIP-VIOLET

  • Item #: AI3070-025VP
  • Mfg #: AI3070-02VP
  • $5.72

Product Description

Air Induction Dual Pattern Flat Spray Tips


For use with the 98579-*-NYR TeeJet cap

Typical Applications:
Provides excellent penetration and seed head coverage for fungicide spraying on cereal crops
  • AI3070 produces two wide angle, flat spray patterns for uniform coverage in broadcast applications

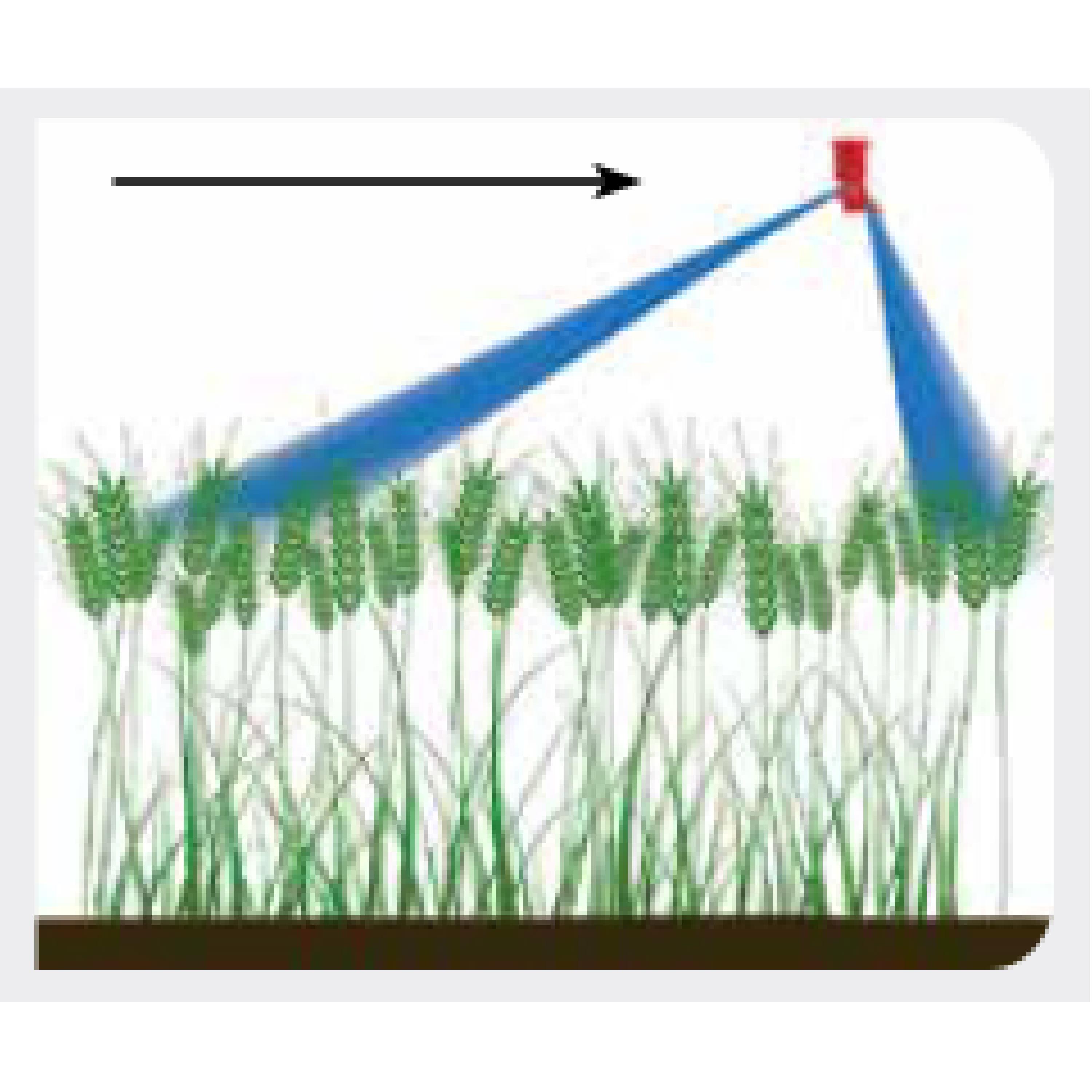

  • 30° forward tilted spray penetrates dense crop canopies, while the backward tilted 70° spray maximizes coverage of the crop seed head
  • Drift resistant drops are produced through the use of a venturi air aspirator
  • All acetal construction for excellent chemical and wear resistance
  • Removable pre-orifice for fast and easy cleaning
  • Suggested spray pressure range of 20–90 PSI (1.5–6 bar)
  • Automatic alignment with the use of 98579-1-NYR Quick TeeJet® cap and gasket.
Always double check your application rates. Tabulations are based on spraying water at 70°F (21°C).

Product Specs

  • ColorYellow
  • MaterialPolymer
  • Pressure20-90
  • Product TypeAI3070 Dual Pattern
  • Spray Angle30° and 70°
