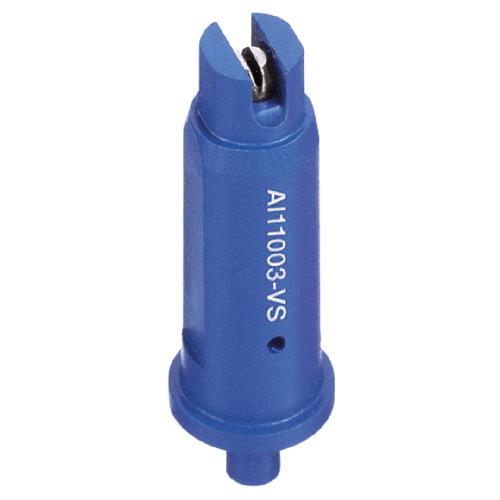

TEEJET AI11003 AIR INDUCTION SPRAY TIP-BLUE

  • Item #: 5018357
  • Mfg #: AI11003-VS
  • $9.58

Product Description

Approved for use with Dicamba products: XtendimaxtmFeXapantm

For use with the 114443-*-CELR TeeJet cap
Typical Applications:
Ideal for drift sensitive applications, including systemic herbicides.
  • Stainless steel insert produces a tapered edge flat spray pattern for uniform coverage in broadcast spraying
  • Polymer insert holder and pre-orifice with VisiFlo® color-coding
  • Larger droplets for less drift
  • Available in eight capacities with a recommended pressure rating 30–115 PSI (2–8 bar)
  • Depending on the chemical, produces large air-filled drops through the use of a Venturi air aspirator
  • Automatic spray alignment with 114443-*-CELR Quick TeeJet® cap and gasket
Rated Droplet Size:
  • 30-39 PSI Ultra Coarse
  • 40-59 PSI Extremely Coarse
  • 60-90 PSI Very Coarse
Due to the pre-orifice design, this tip is not compatible with the 4193A check valve tip strainer.
Always double check your application rates. Tabulations are based on spraying water at 70°F (21°C).

Product Specs

  • ColorBlue
  • DicambaFeXapan
  • DicambaXTENDIMAX
  • MaterialCelcon and Stainless Steel
  • Pressure30-115
  • Product TypeAI Air Inducted Nozzles
  • Spray Angle110°
