  • Item #: 5018358
  • Mfg #: AI11004-VS
  • $10.26

Product Description

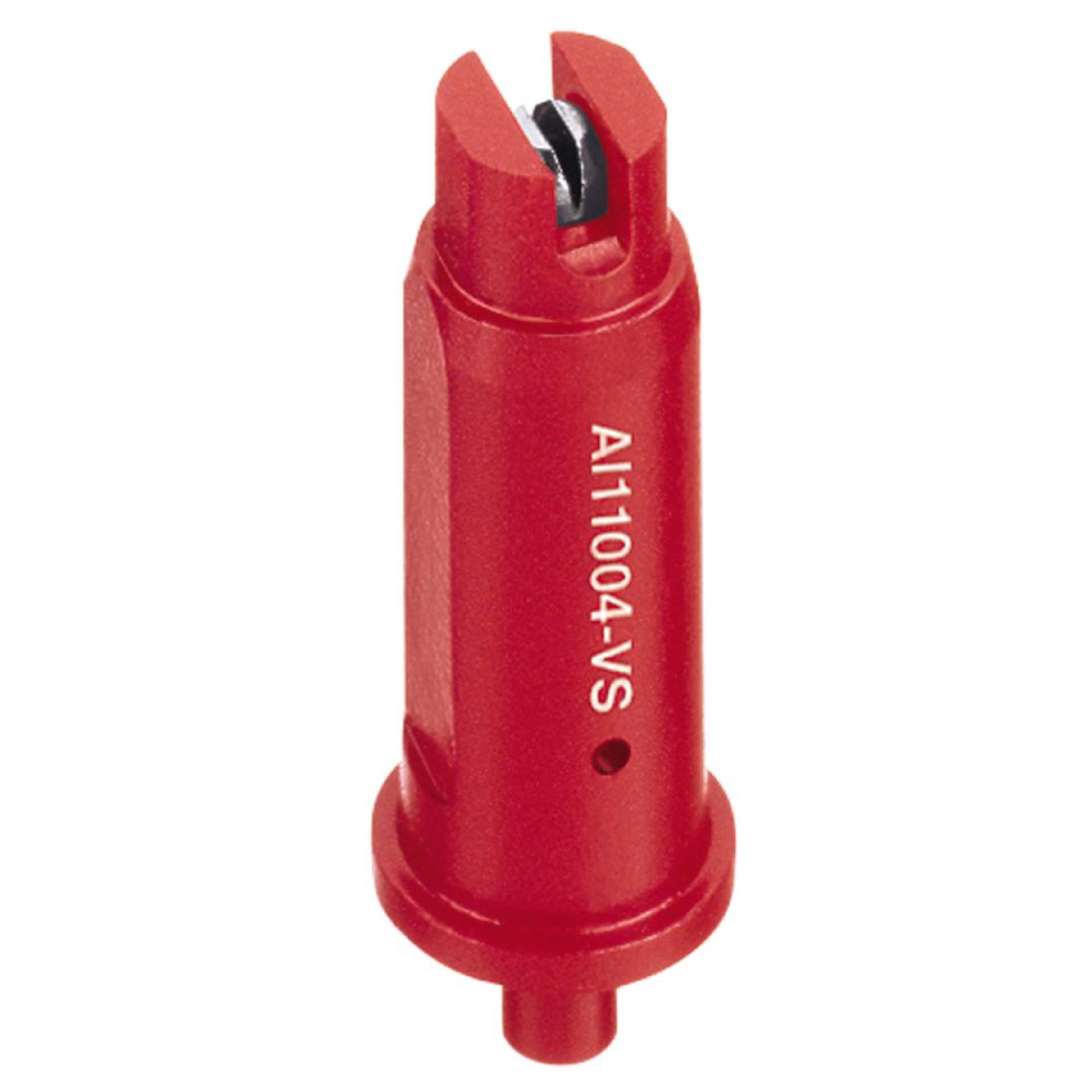

Air Induction Flat Spray Tips

For use with the 114443-*-CELR TeeJet cap

Typical Applications:
Ideal for drift sensitive applications, including systemic herbicides.
  • Stainless steel insert produces a tapered edge flat spray pattern for uniform coverage in broadcast spraying
  • Polymer insert holder and pre-orifice with VisiFlo® color-coding
  • Larger droplets for less drift
  • Available in eight capacities with a recommended pressure rating 30–115 PSI (2–8 bar)
  • Depending on the chemical, produces large air-filled drops through the use of a Venturi air aspirator
  • Automatic spray alignment with 114443-*-CELR Quick TeeJet® cap and gasket
Due to the pre-orifice design, this tip is not compatible with the 4193A check valve tip strainer.
Always double check your application rates. Tabulations are based on spraying water at 70°F (21°C).

Product Specs

  • 2,4-DEnlist
  • ColorRed
  • MaterialCelcon and Stainless Steel
  • Pressure30-115
  • Product TypeAI Air Inducted Nozzles
  • Spray Angle110°
