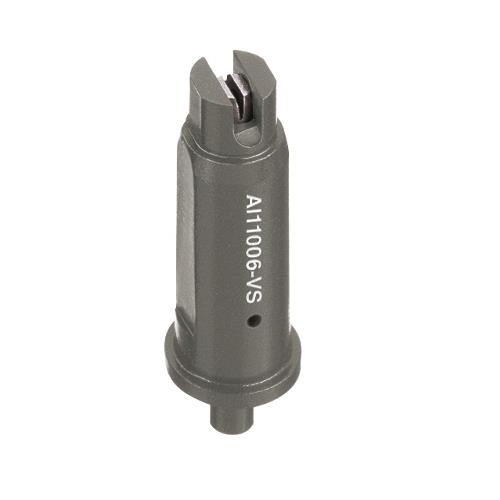

TEEJET AI11006 AIR INDUCTION SPRAY TIP-GRAY

TEEJET AI11006 AIR INDUCTION SPRAY TIP-GRAY

Item #: AI11006-VS
Mfg #: AI11006-VS

$12.32

Product Description

TEEJET AI11006-VS AIR INDUCTION SPRAY TIP - GRAY distributes a tapered edge flat spray pattern for a uniform coverage in broadcast spraying. This tip is ideal for drift sensitive applications by producing larger air-filled droplets through the use of a Venturi Air Aspirator for numerous applications including systemic herbicides. The AI TEEJET Air Induction flat spray tip -VS version is constructed of Stainess Steel with VisiFlo color-coding. The AI11006 is rated at 0.60 GPM at 40 PSI. This TeeJet nozzle is a good option for spraying herbicides and other chemicals where drift control is important.

For use with the 114443-*-CELR TeeJet cap

Typical Applications:

Ideal for drift sensitive applications, including systemic herbicides.

Stainless steel insert produces a tapered edge flat spray pattern for uniform coverage in broadcast spraying
Polymer insert holder and pre-orifice with VisiFlo® color-coding
Larger droplets for less drift
Available in eight capacities with a recommended pressure rating 30–115 PSI (2–8 bar)
Depending on the chemical, produces large air-filled drops through the use of a Venturi air aspirator
Automatic spray alignment with 114443-*-CELR Quick TeeJet® cap and gasket

Due to the pre-orifice design, this tip is not compatible with the 4193A check valve tip strainer.

Always double check your application rates. Tabulations are based on spraying water at 70°F (21°C).
