  • Item #: 5018363
  • Mfg #: TTI11002-VP
  • $8.66

Product Description

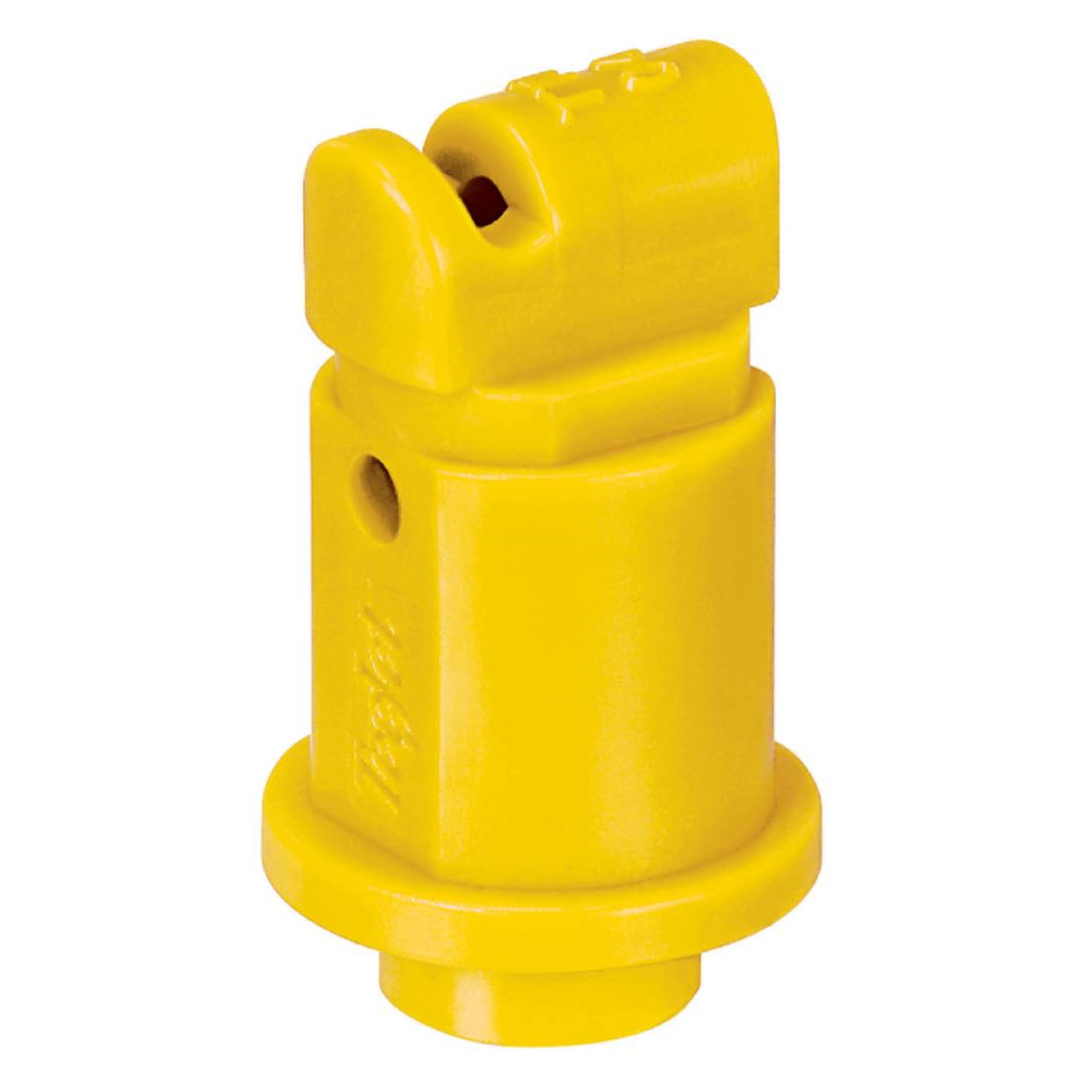

Flat Spray Tips
For use with the 114443-*-CELR TeeJet cap Note: Due to pre-orifice design, this tip is not compatible with the 4193A check valve tip strainer
Typical Applications:
Extremely coarse droplet size provides the best drift control possible and is ideal for soil applied and post-emerge systemic products.

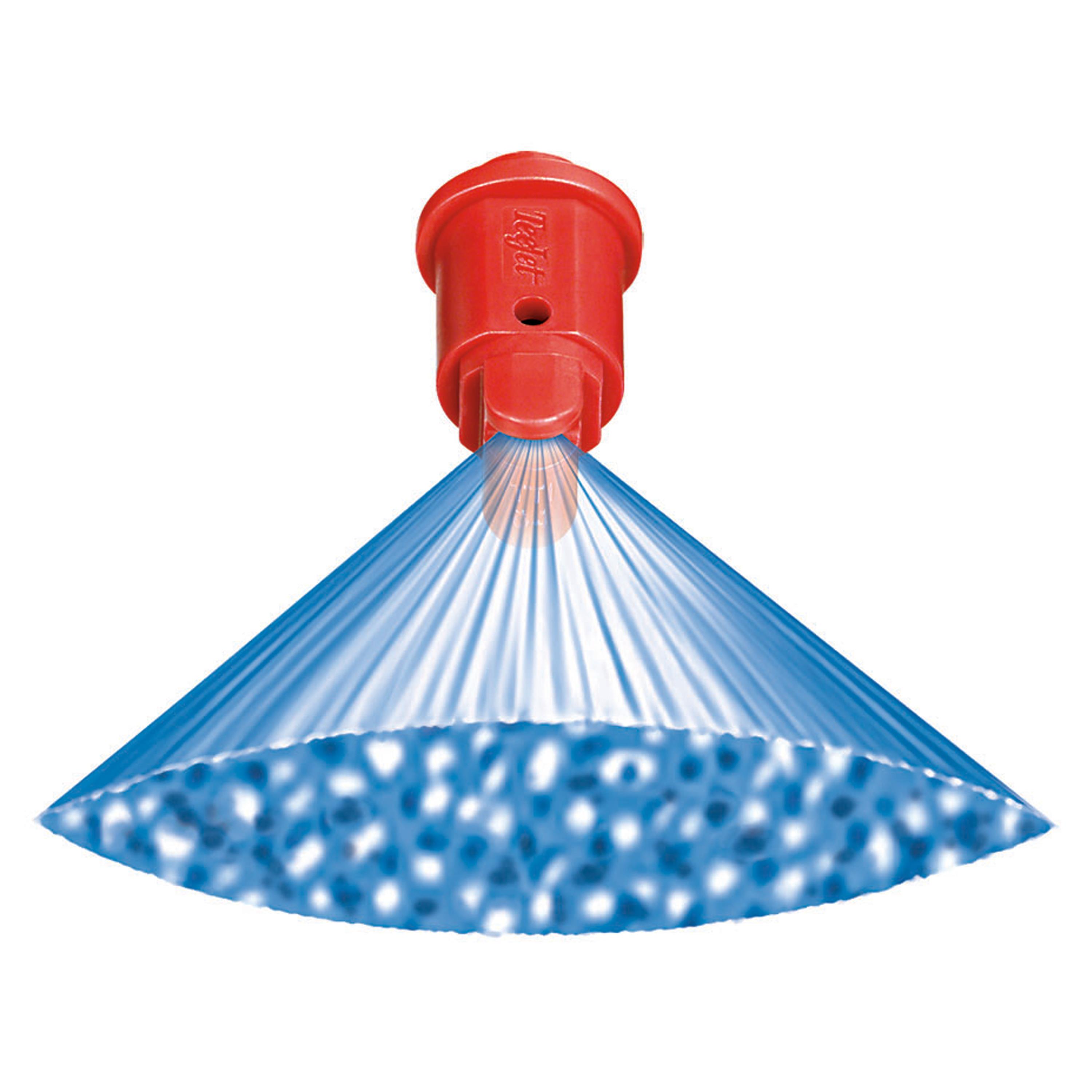

  • 110° wide angle, air induction, tapered flat spray tip pattern based on the patented outlet orifice design of the original Turbo TeeJet® nozzle
  • Patented orifice design provides large, round passages to minimize plugging
  • Depending on the chemical, produces large air-filled drops through a Venturi air aspirator resulting in less drift
  • All polymer construction for excellent chemical and wear resistance
  • Compact size to prevent tip damage
  • Removable pre-orific
  • Ideal for use with automatic sprayer controllers
  • Wide operating pressure range: 15–100 PSI (1–7 bar)
  • Automatic spray alignment with 114443-*-CELR Quick TeeJet cap and gasket for capacities 015 thru 06; 114502-*-CELR for capacities 08 and 10
Always double check your application rates. Tabulations are based on spraying water at 70°F (21°C)

Product Specs

  • ColorYellow
  • MaterialPolymer
  • Pressure15-100
  • Product TypeTTI TurboTeeJet Induction
  • Spray Angle110°
