  • Item #: PK-AIXR11005-VP
  • Mfg #: PK-AIXR11005VP
  • $29.88

Product Description

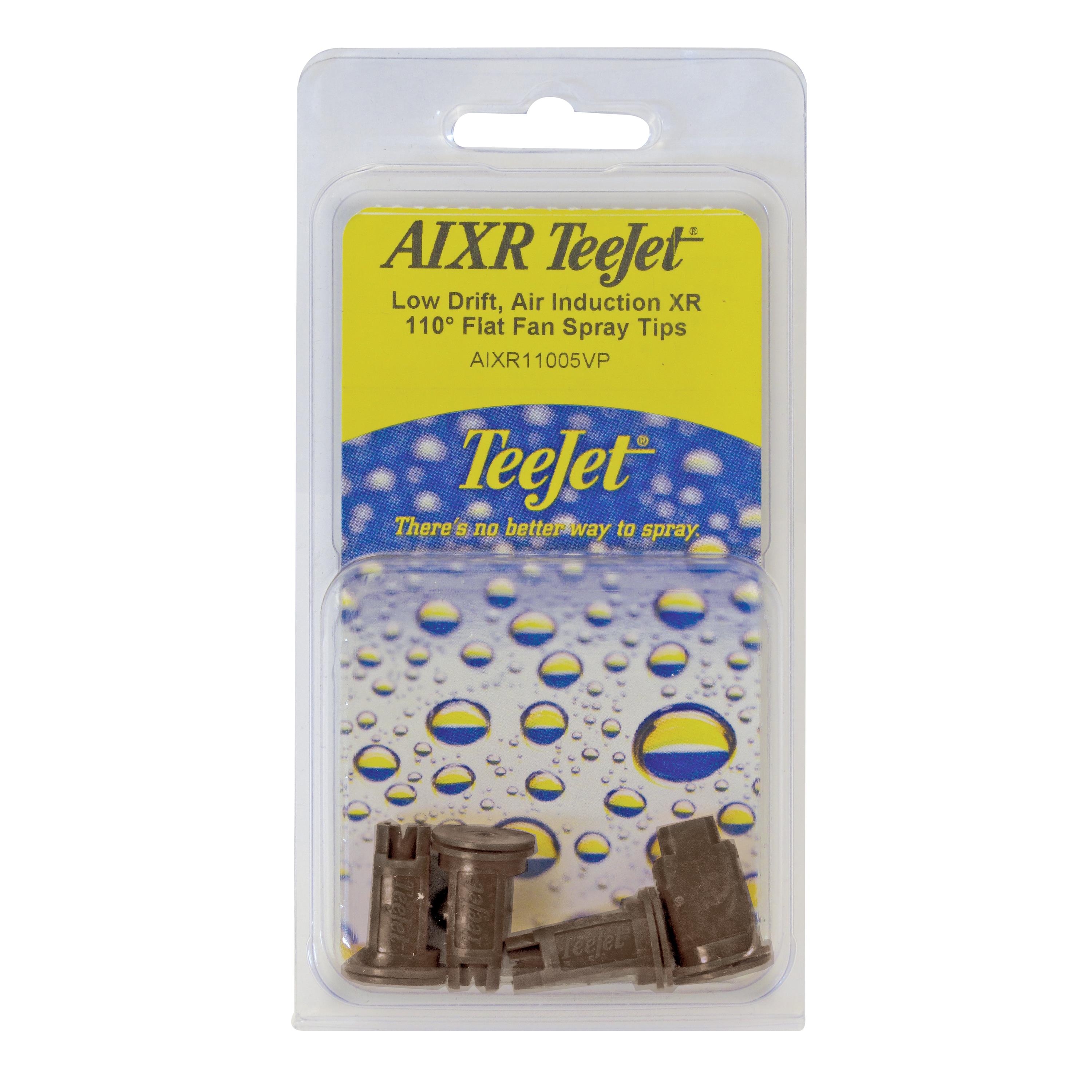

The pack of TEEJET AIXR11005-VP Air Induction XR Flat Spray tip in brown is ideal for a wide range of application including post-emerge systemic products. The air induction design provides good drift control while still providing coverage. The 110° wide, tapered flat spray angle tip has air induction technology that offers better drift management. The AIXR spray tips are constructed of Polymer with VisiFlo color-coding. The AIXR11005 is rated at 0.50 GPM at 40 PSI. Overall, the TeeJet AIXR11005VP is a versatile nozzle ideal for applications requiring a balance between effective coverage, drift reduction, and durability.
For use with the 114441-*-CELR TeeJet cap
Typical Applications:
Air induction design provides good drift control while still providing coverage. Ideal for a wide range of application including post-emerge systemic products.
  • 110° wide, tapered flat spray angle with air induction technology offers better drift management
  • Made of a two-piece UHMWPE polymer construction with VisiFlo® color-coding. UHMWPE provides excellent chemical resistance, including acids, as well as exceptional wear life
  • Compact size to prevent tip damage
  • Depending on the chemical, produces large air-filled drops through a Venturi air aspirator
  • Removable pre-orifice
  • Available in nine tip capacities with a wide operating pressure range: 15–90 PSI (1–6 bar)
  • Automatic spray alignment with 114441-*-CELR Quick TeeJet® cap and gasket for capacities 015 thru 06; 114443-*-CELR for capacities 08 thru 10
Always double check your application rates. Tabulations are based on spraying water at 70°F (21°C).

Product Specs

  • ColorBrown
  • MaterialPolymer
  • Pressure15-90
  • Product TypePre-Packaged Tips
  • Spray Angle110°
