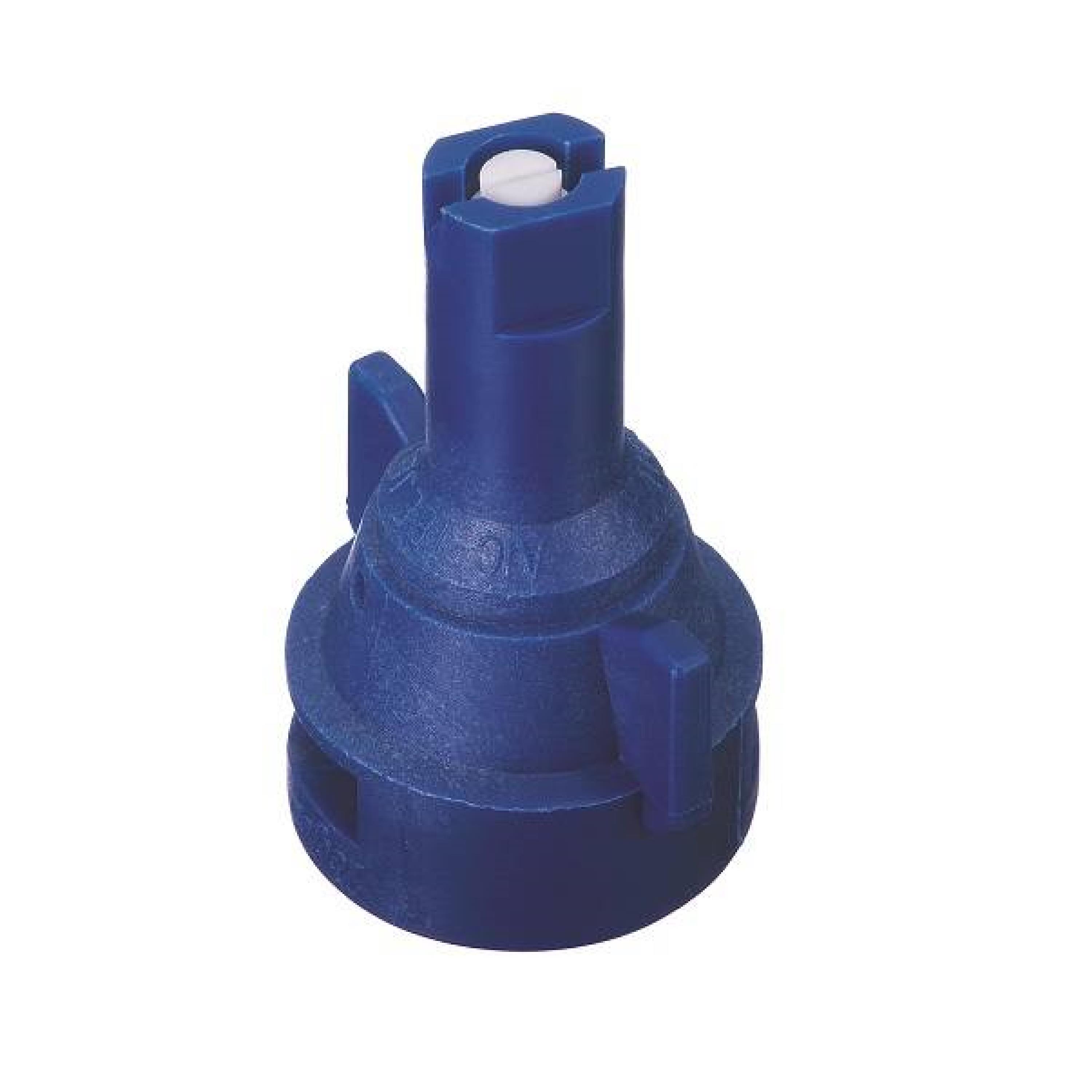

TEEJET AIC11003-VK SPRAY TIP CAP/GASKET - CERAMIC

TEEJET AIC11003-VK SPRAY TIP CAP/GASKET - CERAMIC

  • Item #: AIC11003-VK
  • Mfg #: AIC11003-VK
  • $10.88

Product Description

TEEJET AIC11003-VK SPRAY TIP WITH MOLDED CAP and GASKET - CERAMIC produces a 110 degree tapered edge flat spray pattern for uniform coverage in broadcast applications. The AIC TEEJET Air Induction flat spray tip -VK version is constructed of CERAMIC with VisiFlo color-coding and is ideal for drift sensitive applications, including systemic herbicides. Depending on chemical, tip is designed to produce large air-filled drops through the use of a Venturi air aspirator. The AIC11003 tip provides automatic spray alignment and is rated at .30 gpm at 40 PSI.

Typical Applications:

Ideal for drift sensitive applications, including systemic herbicides.

Features

  • Ceramic with VisiFlo color-coding.
  • Produces a 110° tapered edge flat spray pattern for uniform coverage in broadcast spraying applications.
  • Larger droplets for less drift.
  • Depending on the chemical, produces large air-filled drops through the use of a Venturi air aspirator.
  • AI TeeJet nozzle molded into Quick TeeJet® cap provides automatic spray alignment.
  • Includes tightly fitting washer that stays put and assures a good seal.
  • Recommended pressure rating 30–115 PSI (2–8 bar).

Product Specs

  • ColorBlue
  • MaterialCeramic
  • Pressure30-115
  • Product TypeAIC Air Inducted Ceramic Tip
  • Spray Angle110°
