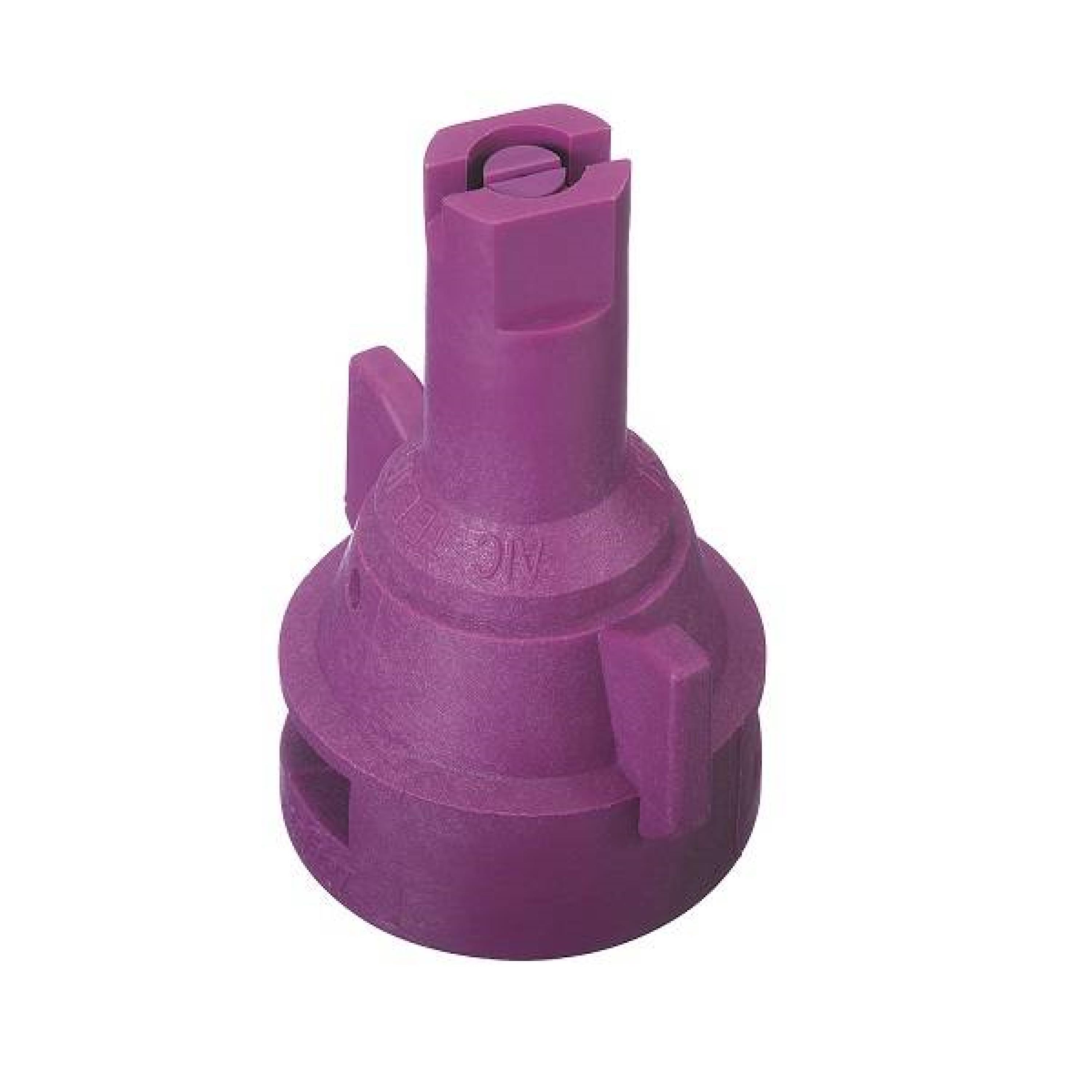

TEEJET AIC110025-VP SPRAY TIP CAP/GASKET - POLYMER
- Item #: AIC110025-VP
- Mfg #: AIC110025-VP
Product Description
TEEJET AIC110025-VP SPRAY TIP WITH MOLDED CAP and GASKET - POLYMER VIOLET produces a 110 degree tapered edge flat spray pattern for uniform coverage in broadcast applications. The AIC TEEJET Air Induction flat spray tip -VP version is constructed of POLYMER with VisiFlo color-coding and is ideal for drift sensitive applications, including systemic herbicides. Depending on chemical, tip is designed to produce large air-filled drops through the use of a Venturi air aspirator. The AIC110025 tip provides automatic spray alignment and is rated at .25 gpm at 40 PSI.
Typical Applications:
Ideal for drift sensitive applications, including systemic herbicides.
Features
- Polymer with VisiFlo color-coding.
- Produces a 110° tapered edge flat spray pattern for uniform coverage in broadcast spraying applications.
- Larger droplets for less drift.
- Depending on the chemical, produces large air-filled drops through the use of a Venturi air aspirator.
- AI TeeJet nozzle molded into Quick TeeJet® cap provides automatic spray alignment.
- Includes tightly fitting washer that stays put and assures a good seal.
- Recommended pressure rating 30–115 PSI (2–8 bar).
Product Specs
- ColorViolet
- MaterialPolymer
- Pressure30-115
- Product TypeAIC Air Inducted Poly Tip
- Spray Angle110°
