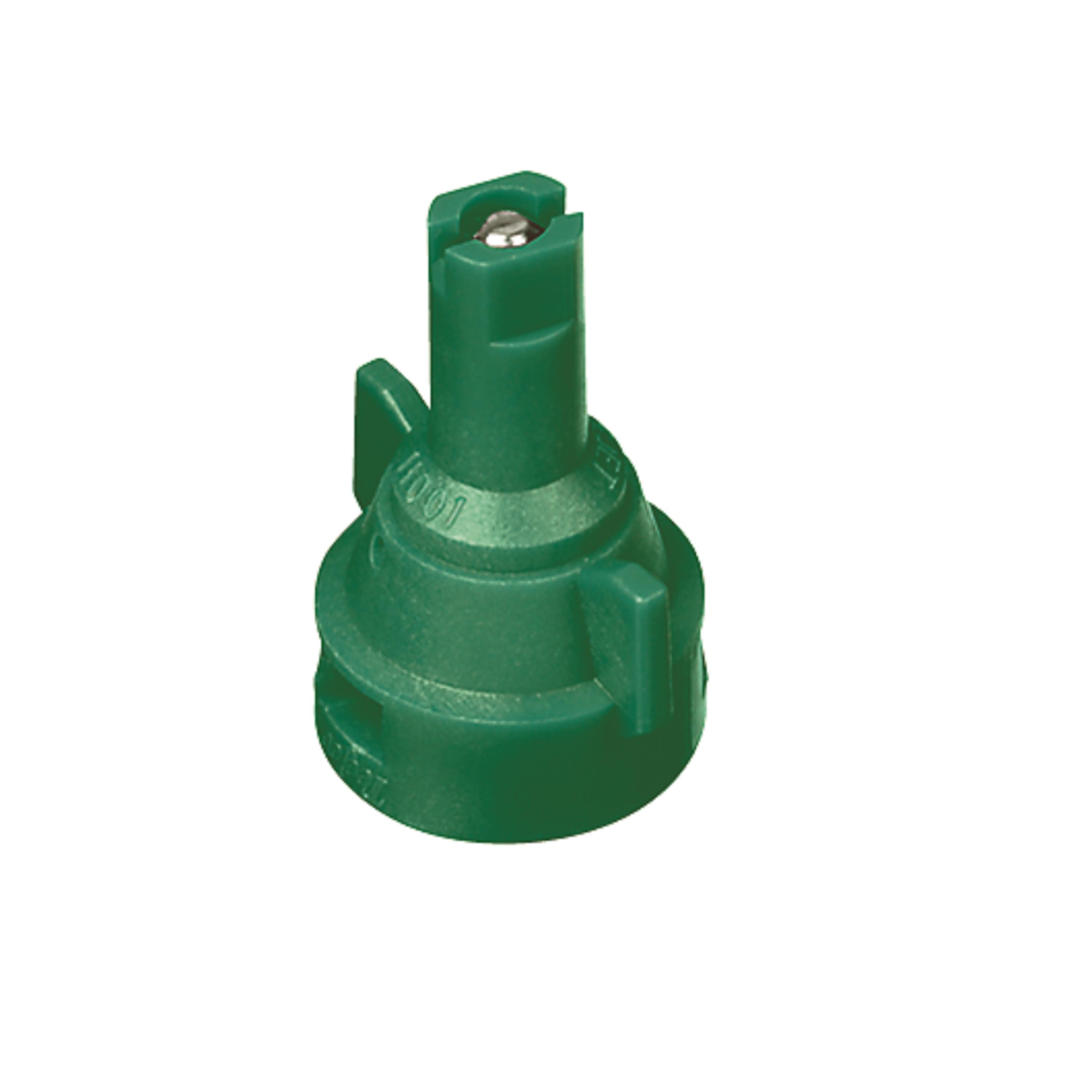

TEEJET AIC110015 SPRAY TIP CAP/GASKET - GREEN
AIC110015-VS_4_lb.jpg AIC110015-VS_7_lb.jpg

TEEJET AIC110015 SPRAY TIP CAP/GASKET - GREEN

  • Item #: AIC110015-VS
  • Mfg #: AIC110015-VS
  • $12.97

Product Description

TEEJET AIC110015-VS SPRAY TIP WITH MOLDED CAP and GASKET - GREEN produces a 110 degree tapered edge flat spray pattern for uniform coverage in broadcast applications. The AIC TEEJET Air Induction flat spray tip -VS version is constructed of Stainess Steel with VisiFlo color-coding and is ideal for drift sensitive applications, including systemic herbicides. Depending on chemical, tip is designed to produce large air-filled drops through the use of a Venturi air aspirator. The AIC110015 tip provides automatic spray alignment and is rated at 0.15 gpm at 40 PSI.

Features

  • Stainless Steel with VisiFlo color-coding.
  • Produces a 110° tapered edge flat spray pattern for uniform coverage in broadcast spraying applications.
  • Larger droplets for less drift.
  • Depending on the chemical, produces large air-filled drops through the use of a Venturi air aspirator.
  • AI TeeJet nozzle molded into Quick TeeJet® cap provides automatic spray alignment.
  • Includes tightly fitting washer that stays put and assures a good seal.

Product Specs

  • ColorGreen
  • MaterialPolymer and Stainless Steel
  • Pressure30-115
  • Product TypeAIC Air Inducted Nozzles
  • Spray Angle110°
