PATHFINDER TRAILER

Product Description

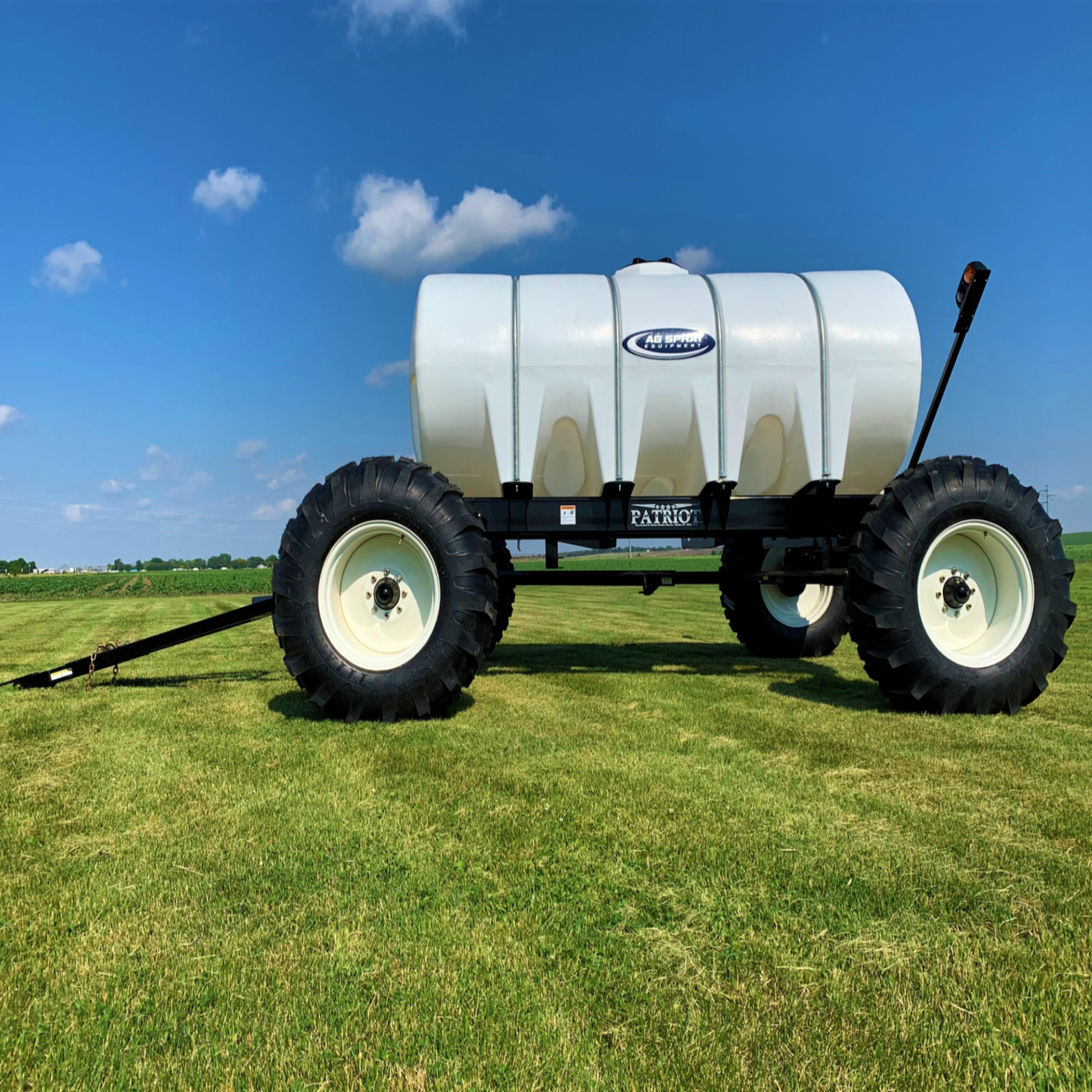

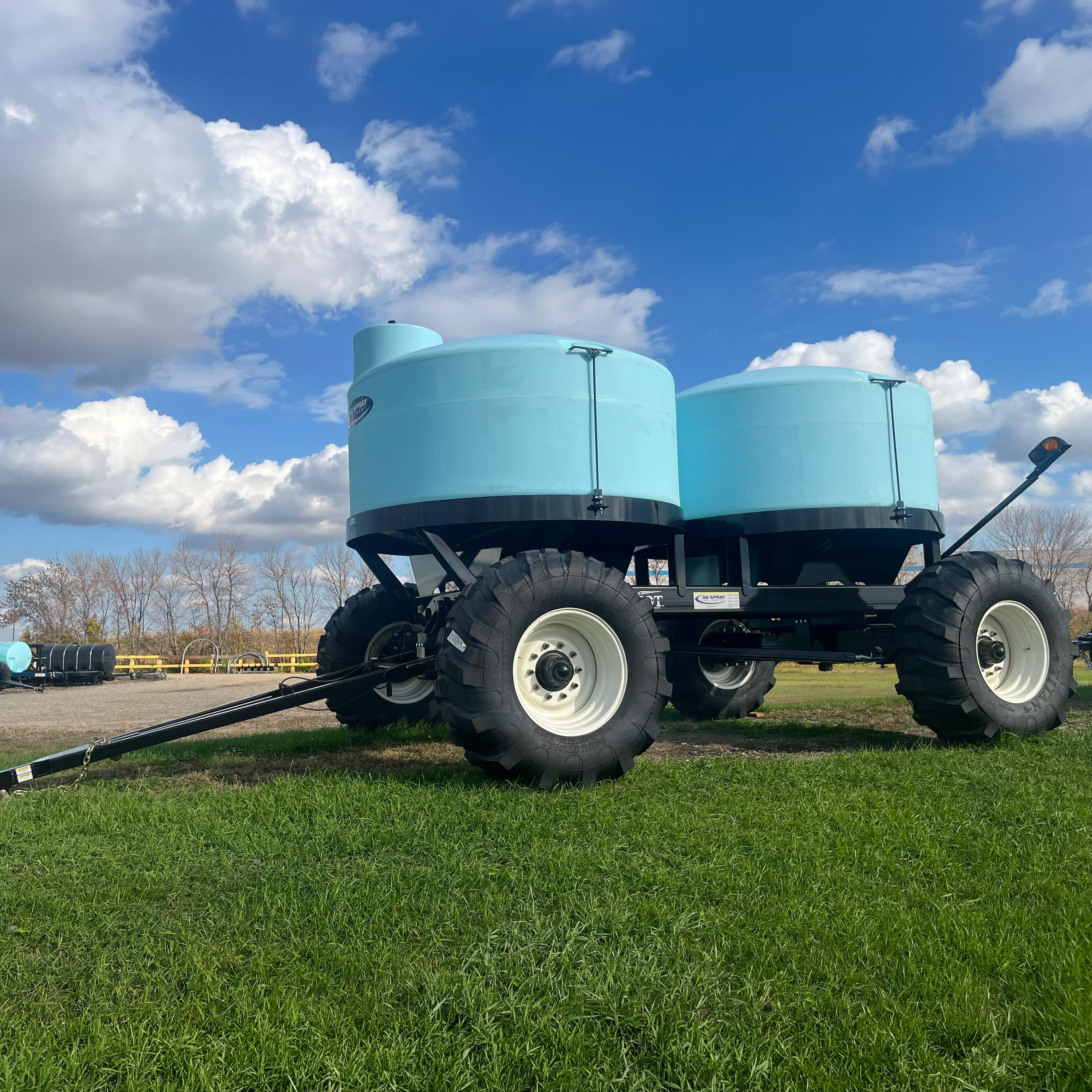

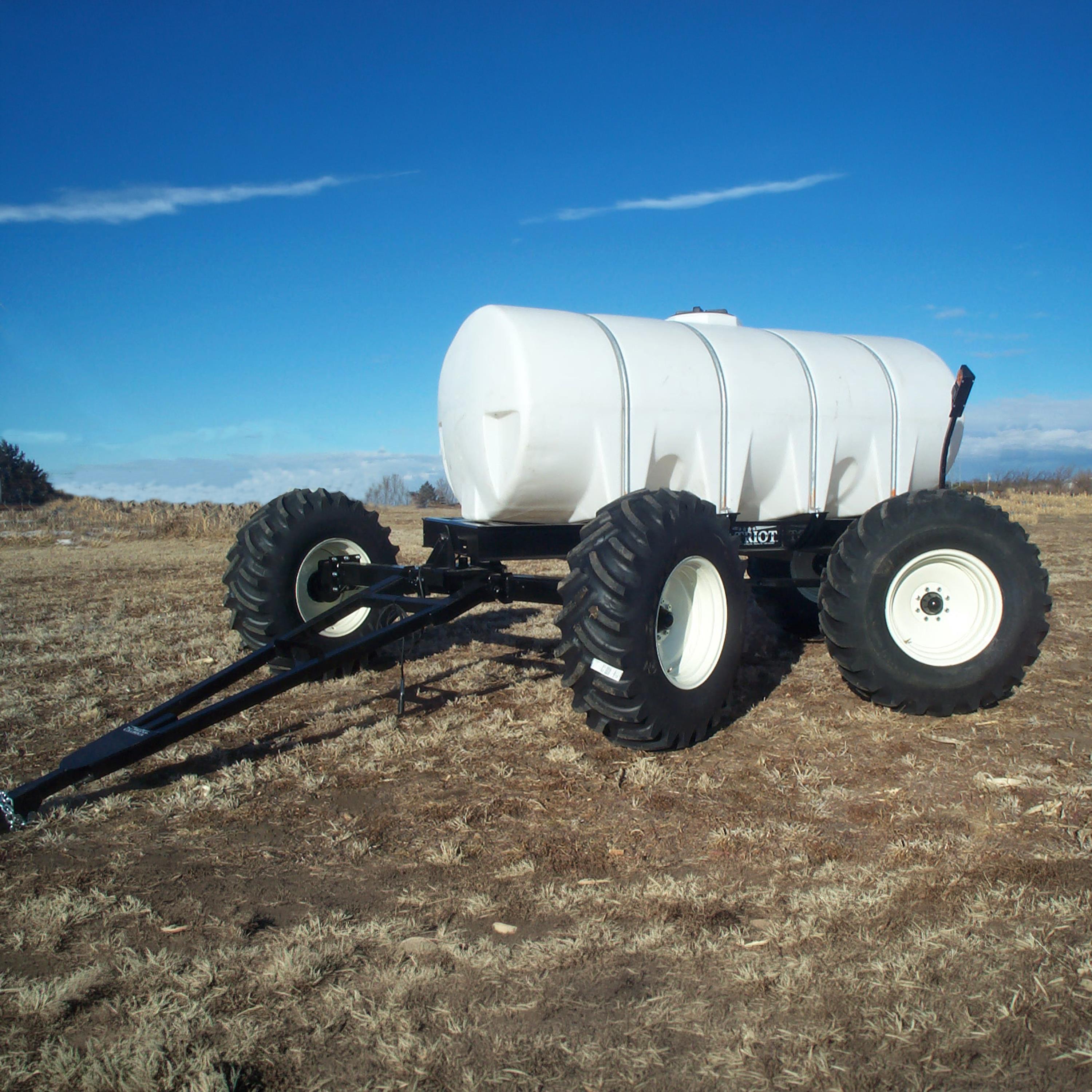

The PATRIOT PATHFINDER TRAILER UNIT is available in 1010, 1610, 2010, 2040 or 2640 gallon units for easy pulling and maneuverability for best placement out in the field. Get up to 27" ground clearance and minimal soil compaction with wide selection of tire options with the standard tire spacing at 120". This nurse trailer eliminates the need for a saddle tank and offers quick vehicle hook ups with telescoping tongue and 1 1/8" draw bar pin. The larger tank allows for less filling so you can cover more acres per day. Patriot Pathfinder Trailers are 4 wheel steering trailers, allowing for tight turns with steerable front and rear axles. Built rugged for today's farm operations to tow behind your planter or toolbar. This trailer can be used all season long during painting, side dressing, strip-till or cultivating.

The standard 120" wheel base covers most applications. Offset wheel bases are offered for 20", 22", 36", 38" and 40" rows.

• Eliminate the need for saddle tanks
• Telescoping tongue speeds hook-up with 1 1/8” draw bar pin
• 120” wheel tread standard, other widths optional
• Black frame with yellow tank and wheels or black frame with white tank and wheels. (Specify when ordering)
• Depending on tire selection up to 27” ground clearance
• Axles pivot on greasable 5th wheels
• Easy to pull and maneuver
• 8 bolt 6000 lb. hubs 3 spindles
• Tire options (Less soil compaction with wide foot print):
  • 1010 gallon trailer: 12.5 L x 15 8-ply or 13.5 L x 16.1 6-ply
  • 1610 gallon trailer: 17.5 L x 24 10-ply or320/85R38 tires
  • 2010 gallon trailer: 19.5 L x 24 10-ply or 320/85R38 tires
  • 2040 gallon trailer: 19.5 L x 24 10-ply or 320/85R38 tires
  • 2640 gallon trailer: 19.5 x 24 12-ply
