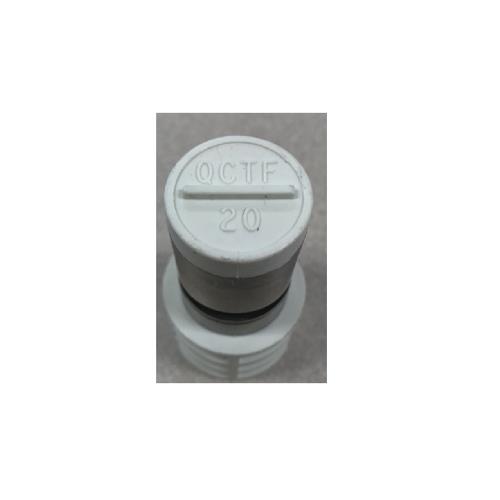

TEEJET QCTF 20 QUICK TURBO FLOODJET NOZZLE
- Item #: QCTF-VS20
- Mfg #: QCTF-VS20
Wide Angle Flat Spray Tips
The revolutionary Quick Turbo FloodJet nozzle combines the precision and uniformity of a flat spray nozzle with the clog-resistance and wide angle pattern of flooding nozzles. It uses an exclusive new design to increase droplet size and distribution uniformity.
- Patented turbulence chamber creates a dramatic improvement in pattern uniformity
- Pre-orifice design produces larger droplets for reduced drift
- Large, round orifice reduces clogging
- 1.26 (32 mm) diameter tip body fits into ¾ cam lever coupling
- Grooved side molding for automatic alignment
- Stainless steel with color-coding for easy size identification
- Available in standard sizes from 1.5 GPM up to 24.0 GPM (6.84 l/min to 94.73 l/min) at pressures of 10–40 PSI (1–3 bar)

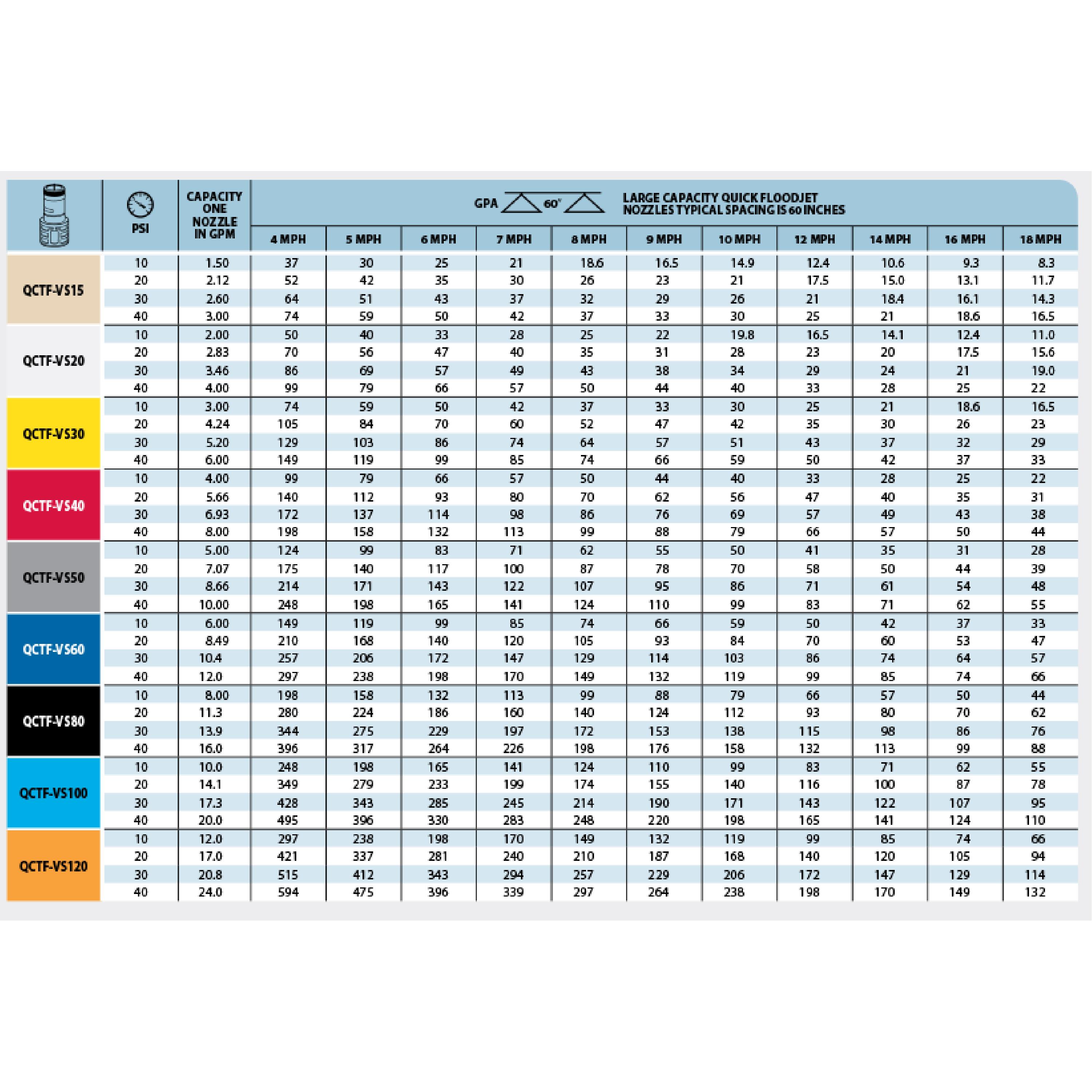

Always double check your application rates. Tabulations are based on spraying water at 70°F (21°C).
See catalog pages 136–157 for useful formulas and other information.
- MaterialPolypropylene, Stainless Steel
- Product TypeQuick Turbo FloodJet
- Spray Angle130°
