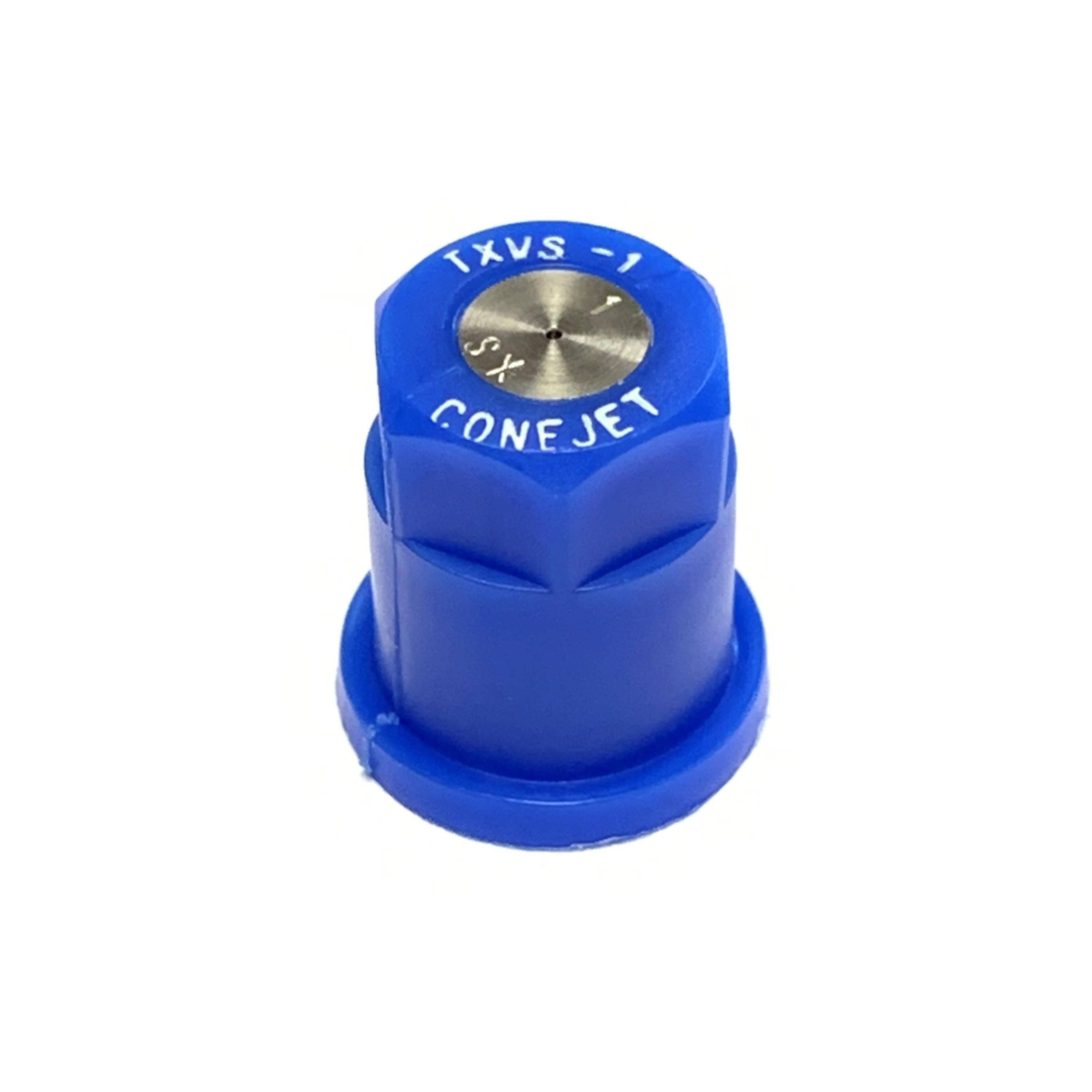

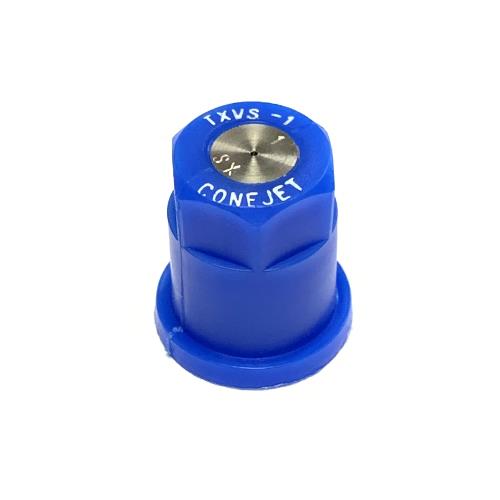

TEEJET TX-VS1 CONEJET HOLLOW CONE TIP - BLUE
- Item #: TX-VS1
- Mfg #: TX-VS1
Product Description
VisiFlo® Hollow Cone Spray Tips
For use with the 114445-*-CELR TeeJet cap
Typical Applications:
Use for directed applications in air blast spraying for orchards and vineyards and other specialty crops. Also well-suited for applications of insecticides, fungicides, defoliants and foliar fertilizers at pressures of 40 PSI (3 bar) and above.
- VisiFlo color-coded version consists of stainless steel or ceramic orifice in polypropylene body. Maximum operating pressure 300 PSI (20 bar). Spray angle is 80° at 100 PSI (7 bar).
- Finely atomized spray pattern provides thorough coverage.
- TX-VS1 and TX-VS2 available in VisiFlo color-coded stainless steel only.
Always double check your application rates. Tabulations are based on spraying water at 70°F (21°C).
See catalog pages 136–157 for useful formulas and other information.
Product Specs
- MaterialStainless Steel
- Pressure30-300
- Product TypeConeJet® Hollow Cone
- Spray Angle80°
