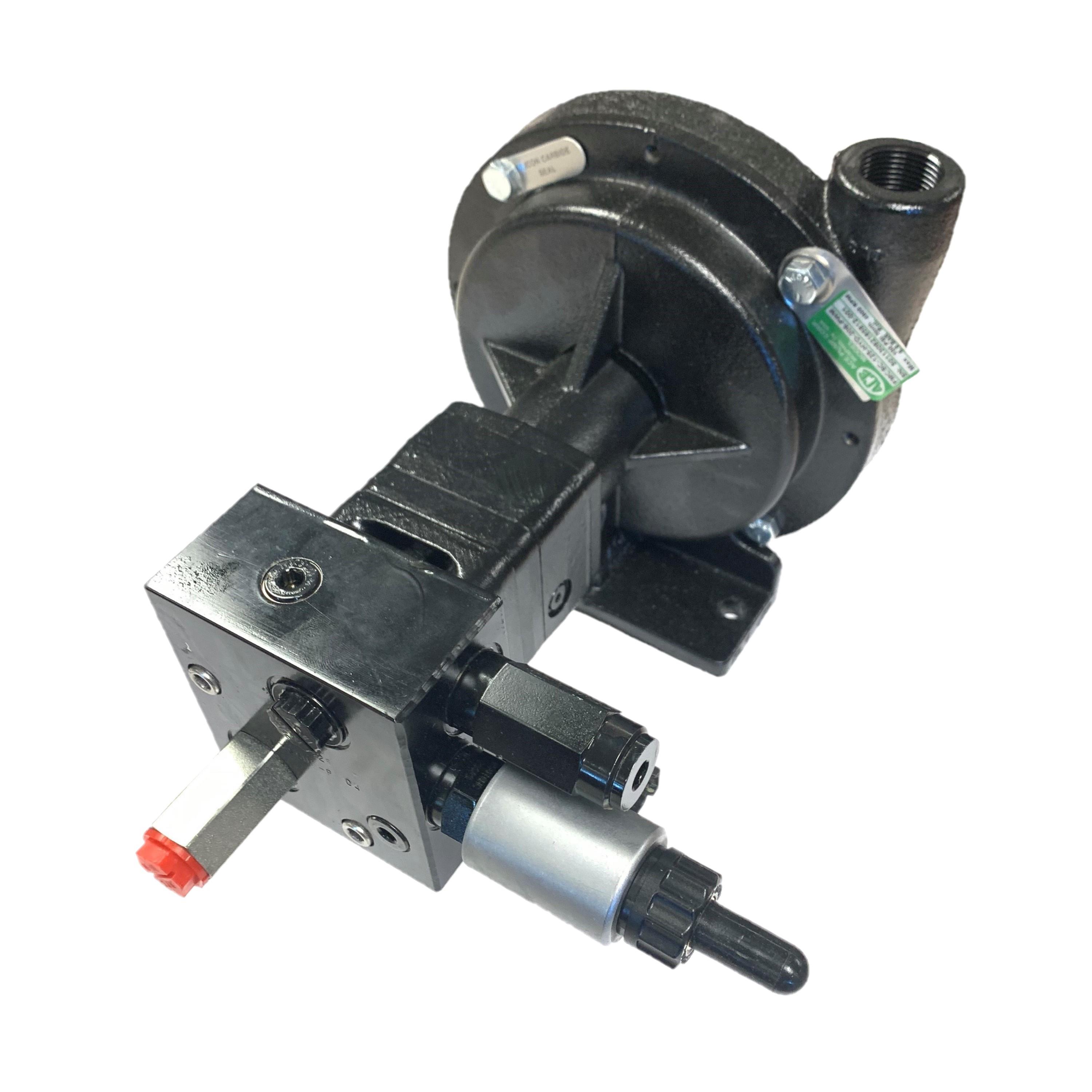

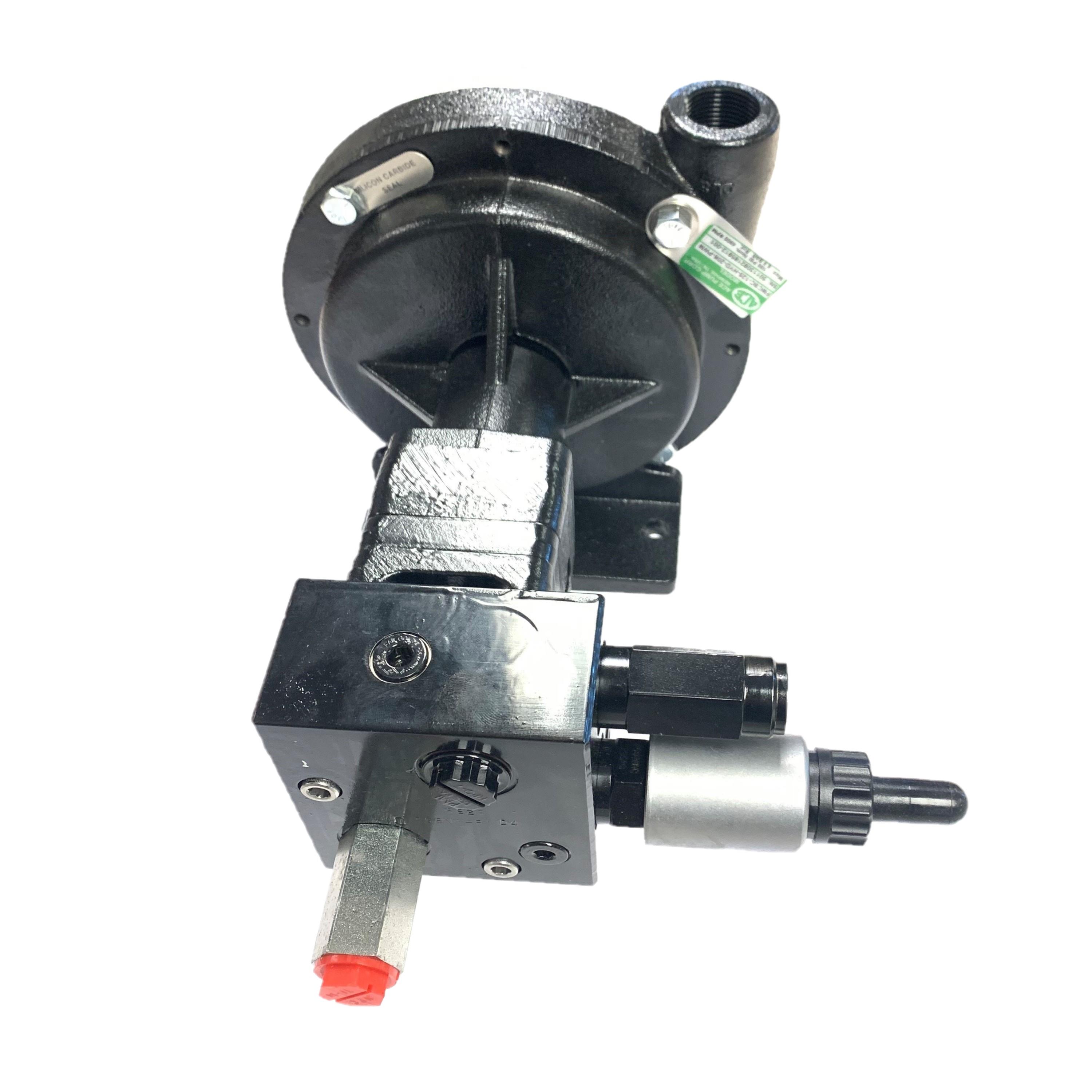

ACE HYDRAULIC 206 PUMP W/ PWM-SILICON CARBIDE SEAL
- Item #: FMCSC-125-HYD-206-PWM
- Mfg #: FMCSC-125-HYD-206-PWM
- $1,868.58
Product Description
The ACE Pro 5 Series has the same compact, close coupled design that you have come to expect with several new features to maximize life and reliability. E-coat corrosion protection and larger bearings provide longer life. A Severe duty silicon carbide seal resists abrasive scratching and transfers heat away from the seal faces for improved survival during run-dry events. Hydraulic Driven Pump with Integrated PWM Control Valve is an excellent choice for planters. Pump is equipped with Suction 1-1/4” NPT x Discharge 1” NPT. Integrated Proportional 12V Control Valve for Precision Ag Applications Using Pulse Width Modulated (PWM) Control Signals. Integrated Pressure Relief Valve Prevents Overspeeding. Designed for the following Hydraulic Systems: Pressure Compensating Closed Center, Load Sensing or Pressure Flow Compensating Closed Center.
Product Specs
- Drive TypeHydraulic Driven
- Drive TypePWM CONTROL
- MaterialCast iron
- Product TypeCentrifugal
- Size1-1/4" x 1"
