BMI-08 PREMIUM BLOCKAGE MONITOR SYSTEM

Product Description

Now you can know your liquid application flow from the cab of your tractor. Identify which row is being under-applied before your yields are diminished costing valuable time and money. Our patented system shows you both low-flow and no-flow problems now, which means you can correct it immediately. No more second guessing if any of your delivery lines are plugged!

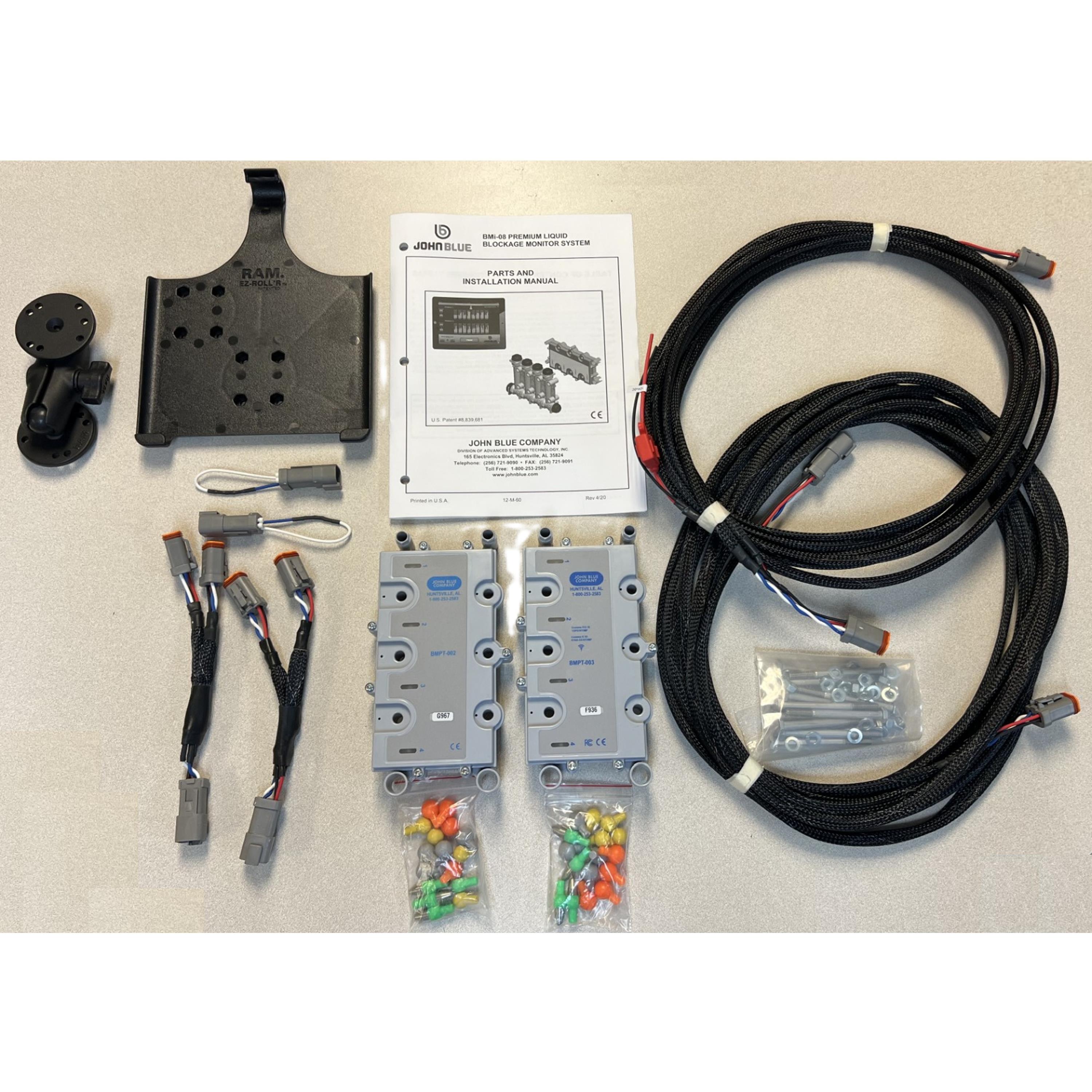

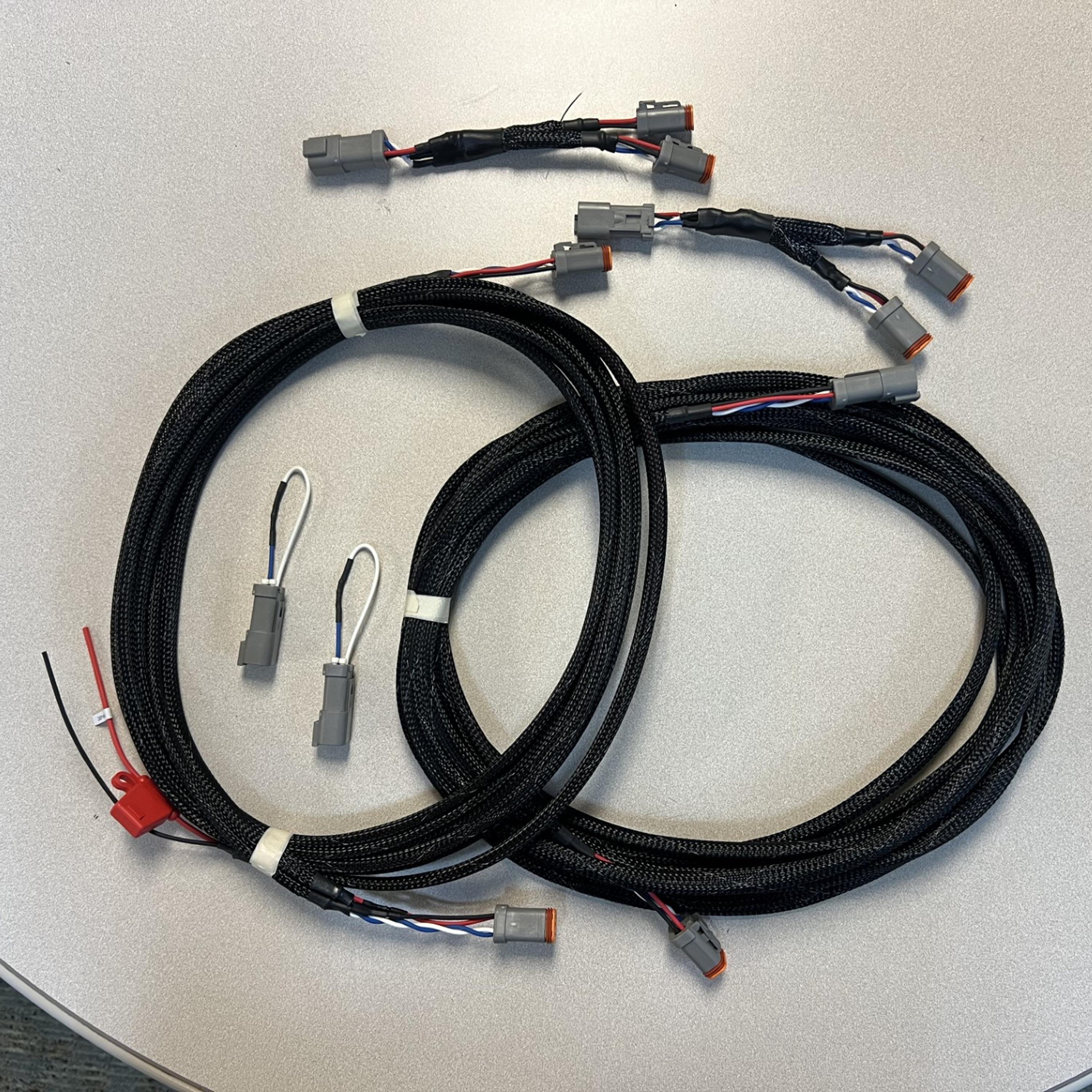

BMI-08 Premium System for iPad, Android, or Amazon Kindle systems. (Users are required to have their own iPad 2 or newer or an Android or Amazon Kindle tablet 7” or larger). Premium 8 Row Kit includes: ram mounting bracket, input harness, 28 ft. extension harness, wireless sensor kit, standard sensor kit and two terminator plugs.  For use with VisaGage II flow monitor's (SMSS4) purchased separately and retrofitted with magnetic balls.

FEATURES

• Uses magnetic sensing technology mounted behind the VisaGage II Flow Monitors.
• Sensors can be mounted to existing VisaGage II units; magnetic balls are supplied with sensors.
• Identifies where magnetic balls are floating in each row during liquid application.
• See a visual display and hear an audible alarm on the control panel right from your tractor cab.
• Can be used with cloudy or dark liquids – LED is visible to the sides of the column.
• Each row with a distribution problem will be highlighted by a flashing LED light at the row. No need to remember or search for which row is blocked after you come to a stop.
• The alarm will reset automatically when the blockage has been corrected.
• Have the ability to “Pause” the system to capture problem rows for investigation later when you are able to stop.
• Our patented LBMS is available in five user-friendly options: standard wired control panel; the wireless systems for iPad, Android, and Amazon Kindle; or the ISOBUS.
• Wireless apps and ISOBUS sections can be defined and rows can be numbered.
• The LBMS App is free and available from the Apple Store, Google Play Store, or the Amazon Kindle Store.
• Settings can be calculated from your desktop or mobile device using our online calculator.

For applications of more than 8 rows there is a 4-row add-on sensor kit BMPT-001.

Add one SMPT-0082A kit per additional 4-rows needed.

PREMIUM LIQUID BLOCKAGE MONITOR SYSTEM MANUAL
