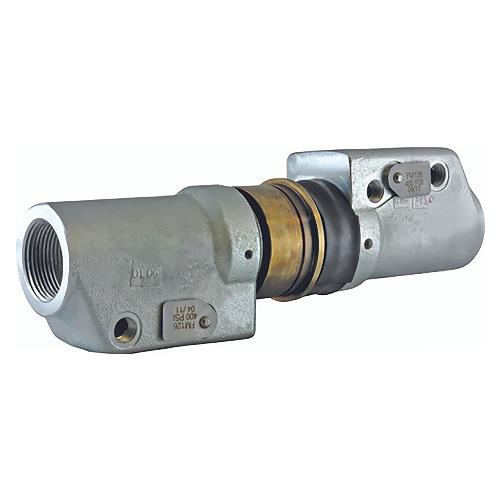

1 1/4" NH3 RB BREAKWAY W/OUT BRACKET

Item #: 113026
Mfg #: 113026

$1,240.51

Product Description

The 1 1/4" NH3 R-B BREAKAWAY WITHOUT BRACKET coupler provides a wide open through bore in its operating position. The Flo-Max safety couplers are a unique pressure balanced safety device that provides nurse tank break-away protection for NH3 toolbars. The Flo-Max couplers are designed to safely disconnect the nurse tank hose from any tool bar in the event of a pull-away from the nurse tank, a nurse tank roll over, or any occurrence that would cause the nurse tank hose to become taut. When the Flo-Max Coupler disconnects, two check valves immediately close. The inlet check valve, located on the male half of the coupling, remains with the nurse tank hose and protects the nurse tank from releasing NH3 from all piping or vessels located on the tool bar. A minimal NH3 release (between 100-150cc) occurs at separation due to trapped liquid between the two check valves. The Flo-Max also features an internal pressure balanced design, so break-away separation force is unaffected by tank pressure. Depending on the NPT size of the R-B, the separation force required to activate the coupler is anywhere from 250-400 pounds of force. In addition, separation is unaffected by wind-blown dirt or grit. After a break-away, the Flo-Max is easily reconnected within minutes.
