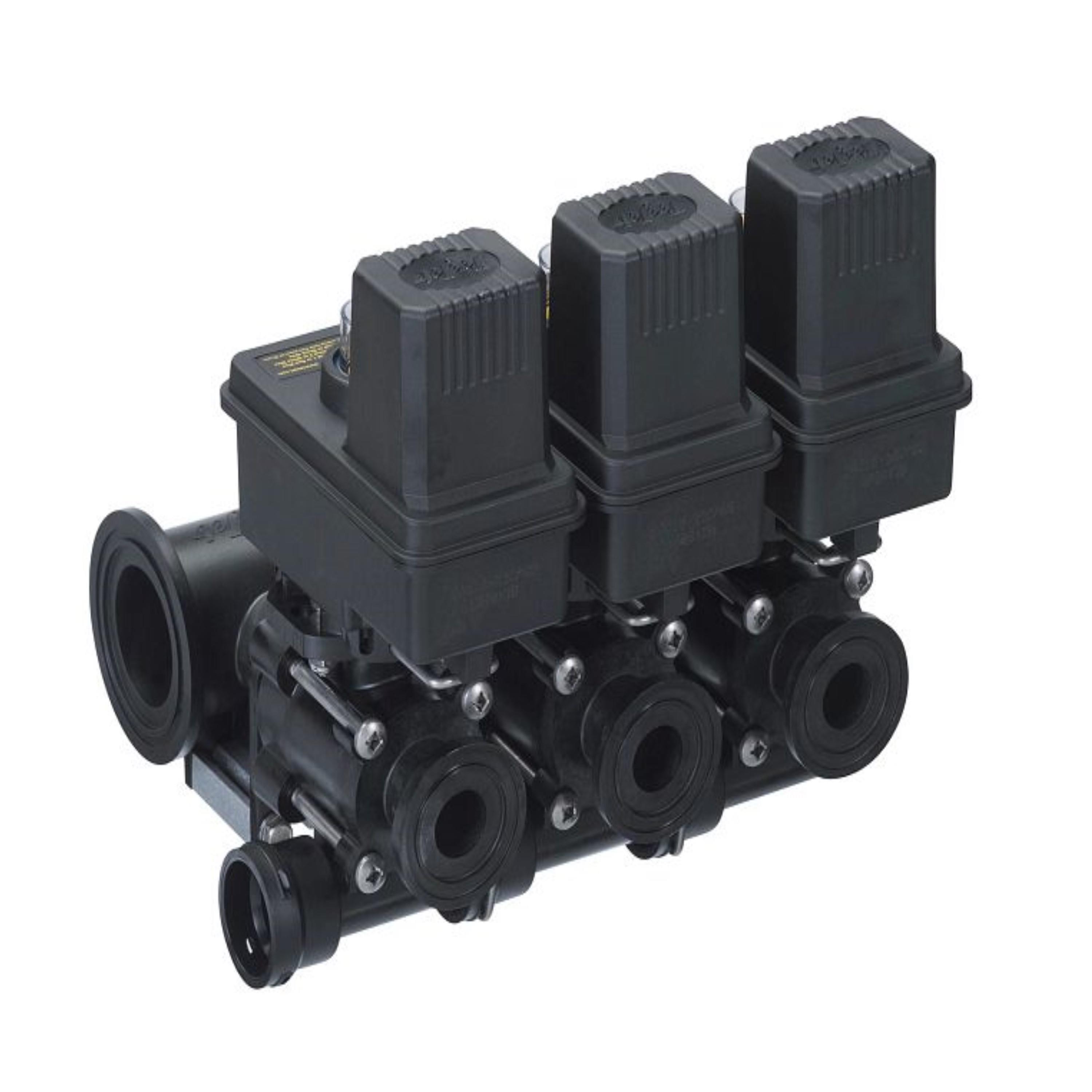

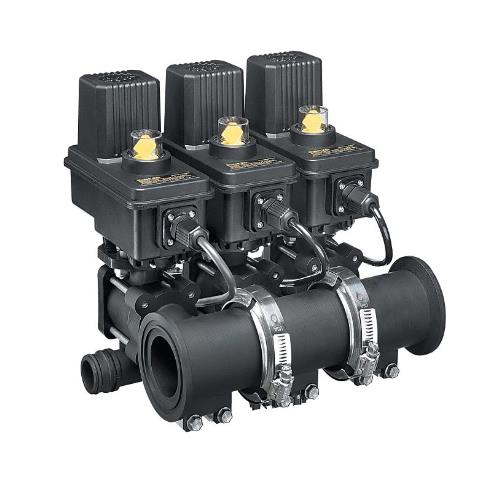

TEEJET 450BEC 3-BANK BOOM SHUTOFF VALVES W/FLOWBACK
453bec-3fbf-c15_1_lb.jpg 453bec-3fbf-c15_2_lb.jpg

TEEJET 450BEC 3-BANK BOOM SHUTOFF VALVES W/FLOWBACK

  • Item #: 453BEC-3FBF-C15
  • Mfg #: 453BEC-3FBF-C15
  • $962.10

Product Description

The TEEJET 450BEC 3-BANK BOOM SHUTOFF VALVE with FLOWBACK provides a convenient and compact solution for multiple ball valves. This system eliminates the need for custom fabrication of pipe or hose manifolds. The flowback valve allows pressure from the boom lines to be relieved back to the tank when the valve is switched to the off position.

  • Pressure Regulating Valves Can Be Incorporated Upon Request
  • Flow Rate 31 GPM @ 5 PSI Pressure Drop (Flow Rates May Vary Based On Number Of Valves And Inlet Size)
  • No External Fuses-Incorporates An Internal Resettable Fuse (Disconnect Power To Valve For 20 Seconds To Reset)
Outlet
Flow Back w/ manifold
3 Valve

Product Specs

  • MaterialPolypropylene
  • MaterialStainless Steel
  • MaterialTeflon
  • MaterialViton
  • Pressure200
  • Product TypeTeejet Motorized Ball Valve
  • Product TypeTeeJet Shutoff Valves
