PATHFINDER TRAILER
- Item #: PATHFINDER TRAILER UNIT
- Mfg #: PATHFINDER TRAILER UNIT
Product Description

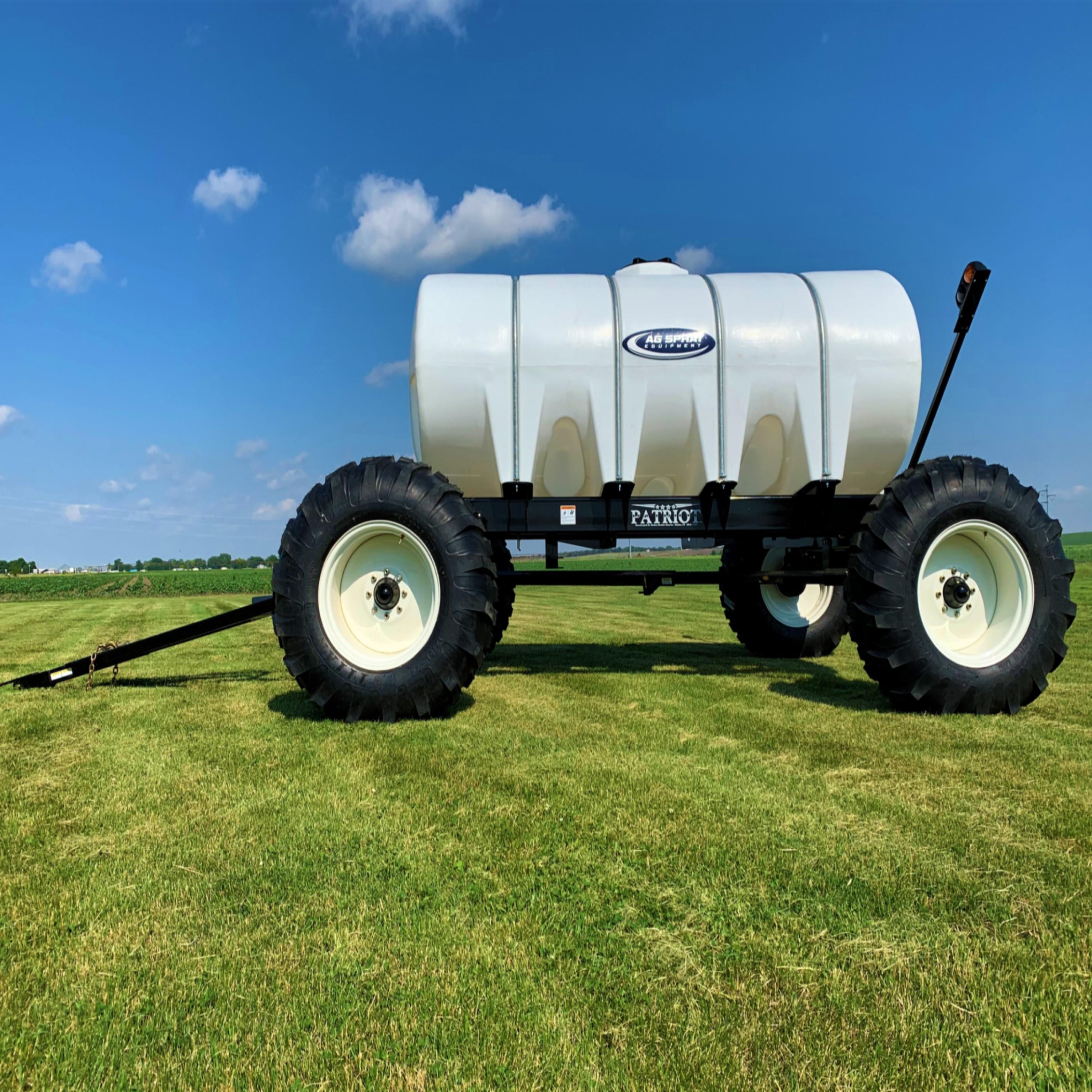

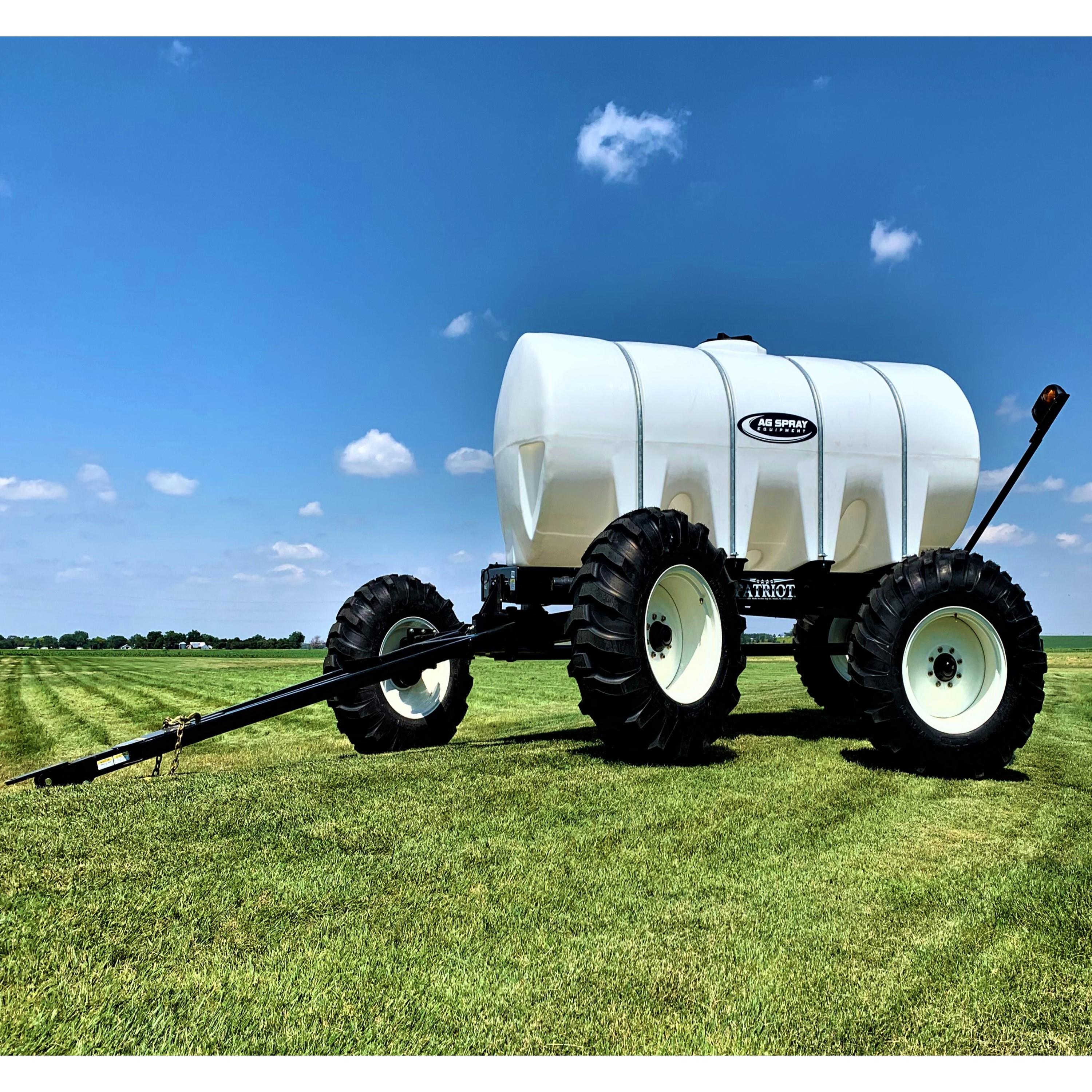

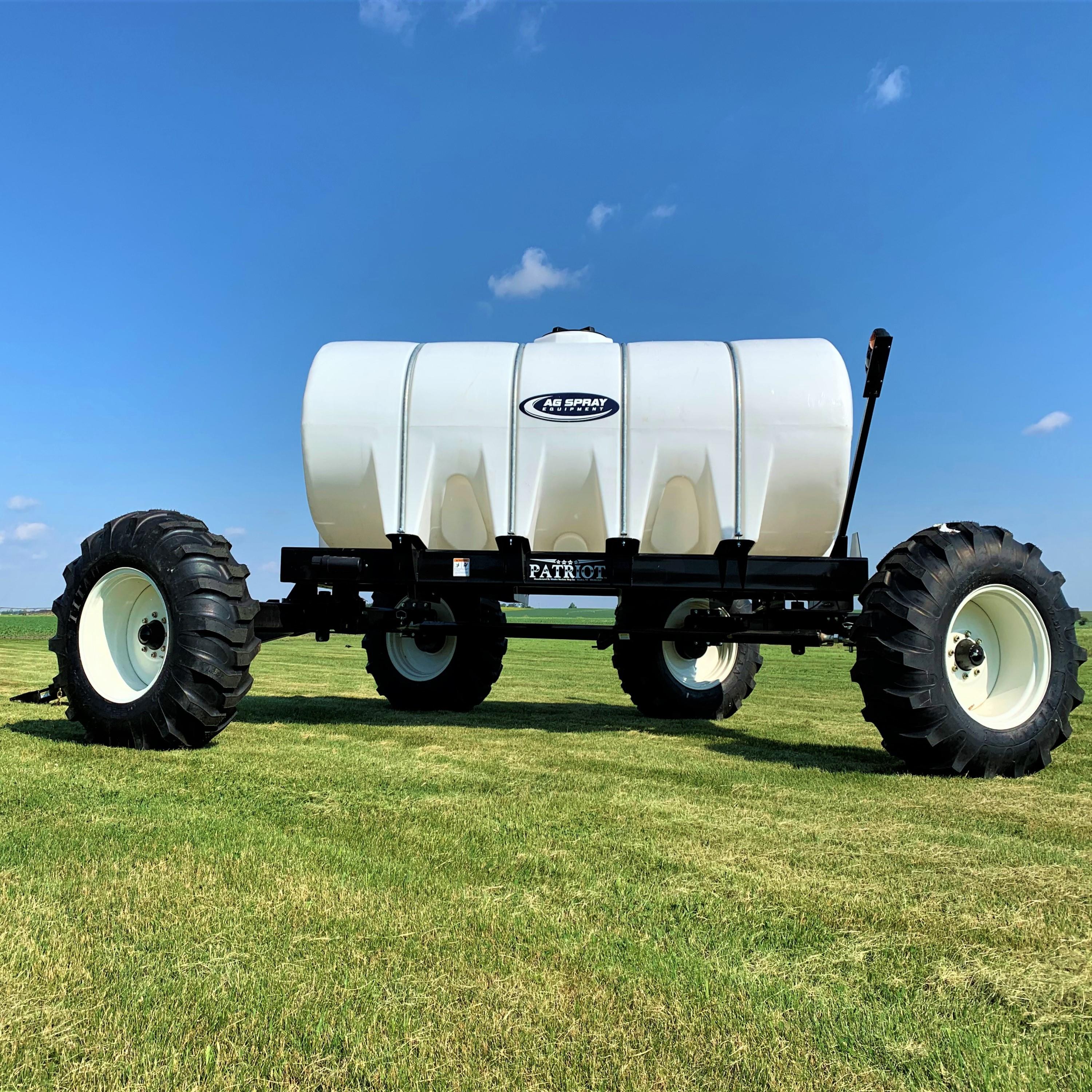

The PATRIOT PATHFINDER TRAILER UNIT is available in 1000, 1600 or 2000 gallon units for easy pulling and maneuverability for best placement out in the field. Get up to 27" ground clearance and minimal soil compaction with wide selection of tire options with the standard tire spacing at 120". This nurse trailer eliminates the need for a saddle tank and offers quick vehicle hook ups with telescoping tongue and 1 1/8" draw bar pin. The larger tank allows for less filling so you can cover more acres per day. Patriot Pathfinder Trailers are 4 wheel steering trailers, allowing for tight turns with steerable front and rear axles. Built rugged for today's farm operations to tow behind your planter or toolbar. This trailer can be used all season long during painting, side dressing, strip-till or cultivating.
- Eliminate the need for saddle tanks
- Telescoping tongue speeds hook-up with 1 1/8” draw bar pin
- 120” wheel tread standard, other widths optional
- Black frame with yellow tank and wheels or black frame with white tank and wheels. (Specify when ordering)
- Depending on tire selection up to 27” ground clearance
- Axles pivot on greasable 5th wheels
- Easy to pull and maneuver
- 8 bolt 6000 lb. hubs 3 spindles
- Tire options (Less soil compaction with wide foot print):
- 1000 gallon trailer: 12.5 L x 15 8-ply or 13.5 L x 16.1 6-ply
- 1600 gallon trailer: 17.5 L x 24 10-ply
- 2000 gallon trailer: 19.5 L x 24 10-ply
